Ionization+fresh air LIVE AIR Premium

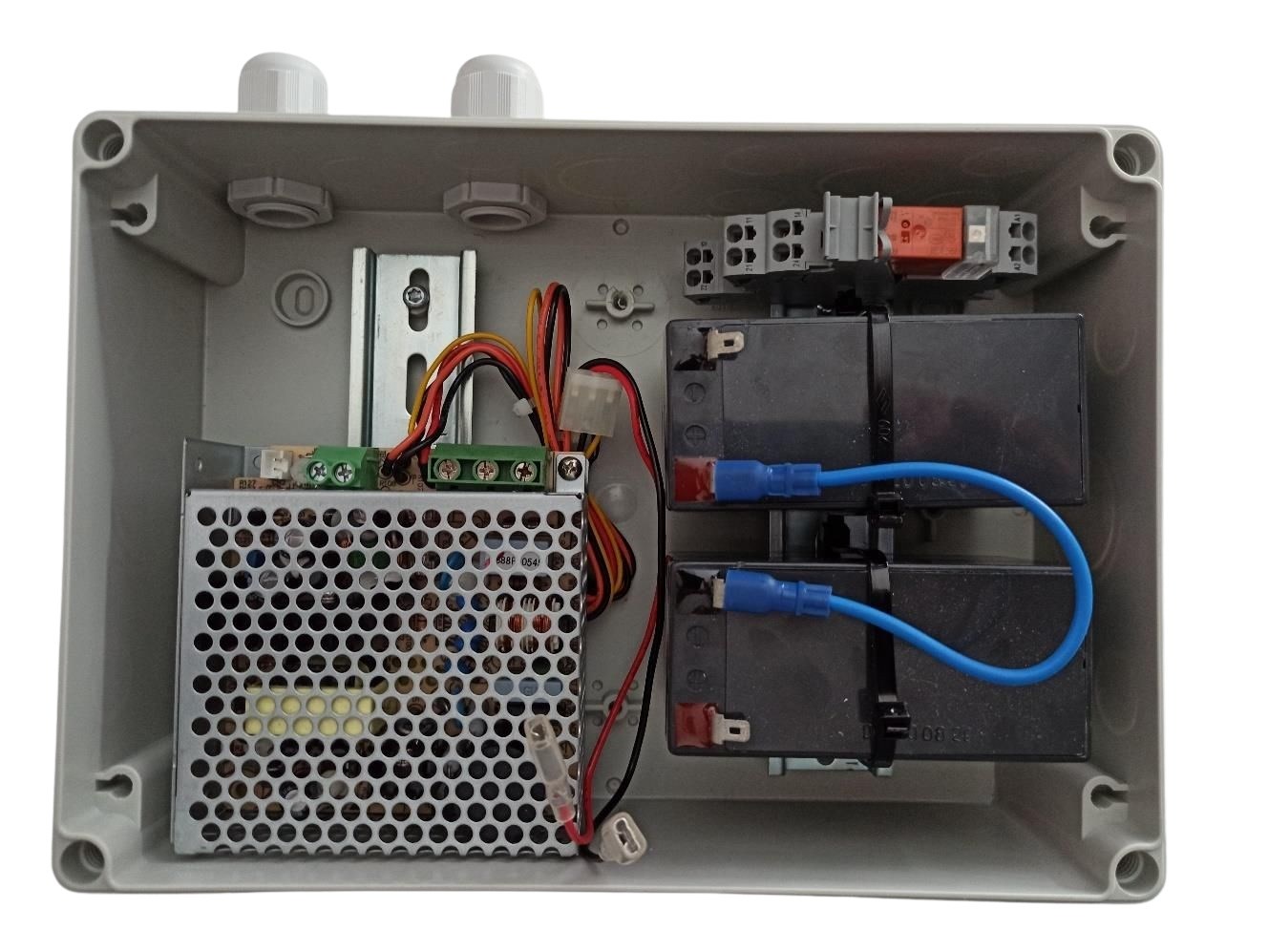

LIVE AIR battery-buffered power supply
Order no.: 022999024
| dimensions (HxWxD mm): | 213 x 254 x 90 |
| Mounting: | on top of the cabin |
| temperature range (C) - (C): | -20°C bis +60°C |
| output voltage: | 27,6V DC |
| nominal output: | 38,6 W |
| Input voltage (V): | 230V AC, 50Hz |
| Case made of: | Polystyrene, grey, similar to RAL 7035 |
| battery: | 2 x 12 V / 1,2 Ah battery |
| operating mode: | permanent operation |
| nominal current: | 1,4 A |
| safety standard: | UL62368-1, CB(IEC62368-1) AC TP TC 004 authorized |
| fuse: | electronically |
Streckenartikel werden in separaten Warenkorb gespeichert!
Description:
Power supply unit incl. battery to ensure functionality in case of power failures, according to VDI 6211 for LIVE AIR product series
1 -
8
from
8
Variants
Product
- dimensions (HxWxD mm)
- Mounting
- power consumption (W)
- Rated voltage [V]
Price
Quantity
LIVE AIR Lift Clean air ionisation system
Order no.: 022999020
- 240 x 240 x 60
- lift car ceiling or lift car inside wall
- max. 7 W
- 230 V
2,017.05 € / Piece
including value added tax
LIVE AIR Lift Clean Invisible air ionisation system
Order no.: 022999021
- 227 x 207 x 118
- on top of the cabin
- max. 13 W
- 24 V DC
2,409.75 € / Piece
including value added tax
LIVE AIR Lift Clean Pro air ionisation system
Order no.: 022999022
- 320 x 300 x 180
- device: inside the cabin wall, Ventilator: outside the cabin wall
- max. 13 W
- 24 V DC
2,255.05 € / Piece
including value added tax
LIVE AIR Lift Vent
Order no.: 022999023
- 180 x 150 x 55
- outside the cabin wall
- max. 2,5 W
- 24 V DC
240.38 € / Piece
including value added tax
LIVE AIR battery-buffered power supply
Order no.: 022999024
- 213 x 254 x 90
- on top of the cabin
- -
- -
243.95 € / Piece
including value added tax
LIVE AIR kit Lift Vent + power supply
Order no.: 022999025
- 213 x 254 x 145
- outside the cabin wall
- max. 2,5 W
- 24 V DC
351.05 € / Piece
including value added tax
LIVE AIR sticker ionized ambient air
Order no.: 022999026
- -
- -
- -
- -
1.19 € / Piece
including value added tax
LIVE AIR ionisation tube
Order no.: 022999027
- -
- -
- -
- -
82.11 € / Piece
including value added tax
Power supply unit incl. battery to ensure functionality in case of power failures, according to VDI 6211 for LIVE AIR product series
