With spacers
Pit ladder type B, 4,10 m EN 81-20
Order no.: 0361420010
| Materials / corrosion protection: | extruded aluminium profile |
| Weight (kg): | 8,70 |
| Exterior ladder width (mm): | 350 |
| Number of rungs: | 14 |
| Ladder length (m): | 4,20 |
| Ladder application: | stationary/shaft mounting |
| DIN EN 81-20/50 compliant: | yes |
| Stile dimension (mm): | 50 x 25 |
| Design-related angle of inclination alpha: | 90° |
| Interior ladder width (mm): | 300 |

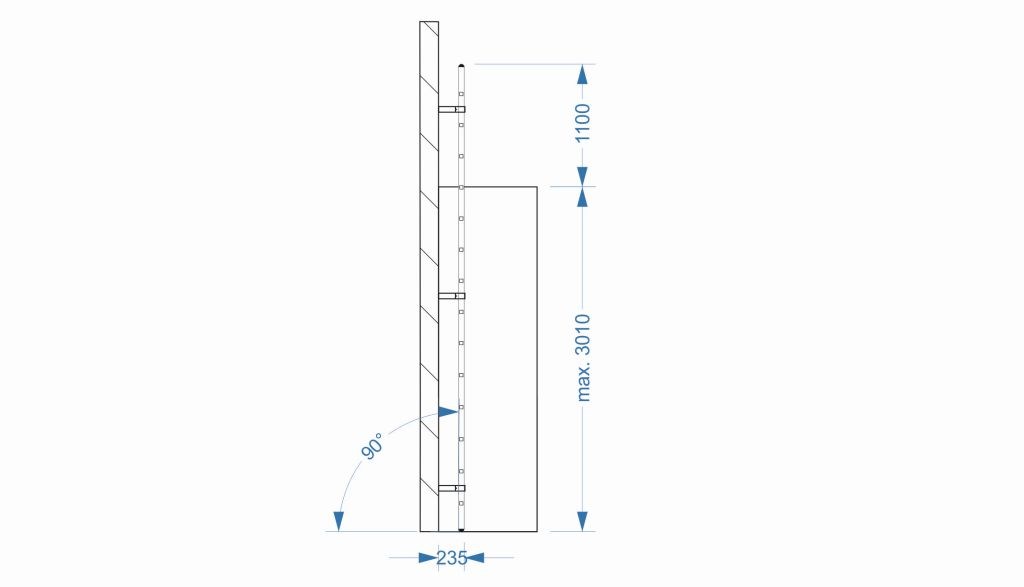

| Max. pit depth with angle of inclination =alpha (m): | 3,000 |
| Rung dimension/rung depth (mm): | 30 x 30 |
| Amount of spacers: | 6 |
Description:
compliant with EN 81 and EN 131, with 6 mounting brackets and fixing material
ladder stringer dimension 50x25 mm
