With spacers

Pit ladder type B, 2,50 m EN 81-20
Order no.: 0361250010
Stingl
Materials / corrosion protection: extruded aluminium profile
Exterior ladder width (mm): 346
Number of rungs: 8
Ladder length (m): 2,50
Ladder application: stationary/shaft mounting
DIN EN 81-20/50 compliant: yes
Stile dimension (mm): 57,1x22,9
Design-related angle of inclination alpha: 90°
Interior ladder width (mm): 300

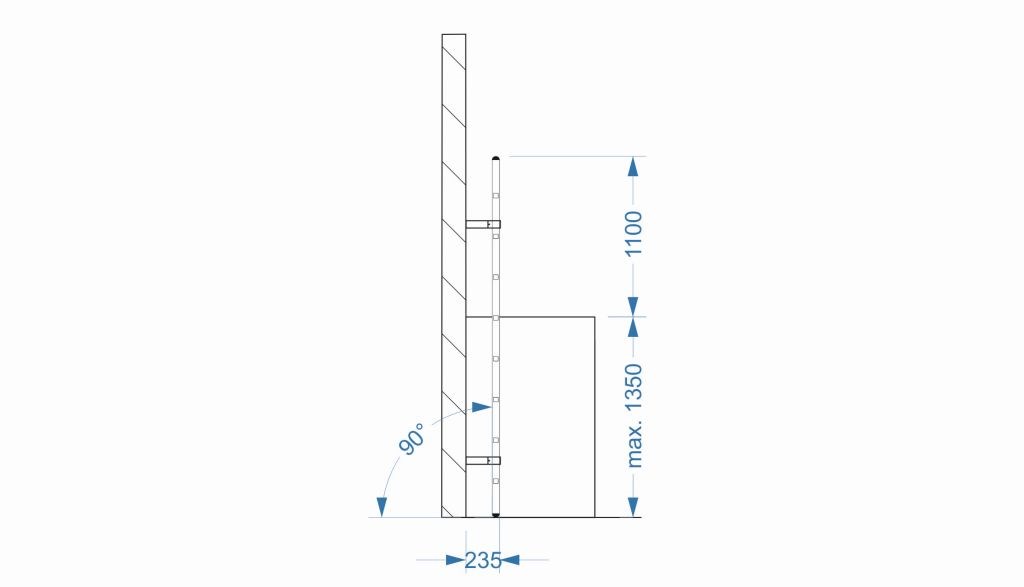

Max. pit depth with angle of inclination =alpha (m): 1,400
Rung dimension/rung depth (mm): 25,5x28
Amount of spacers: 4
174.22 € / Piece
including value added tax



Description:

compliant with EN 81 and EN 131, with 4 mounting brackets and fixing material.

    1 - 9 from 9 Variants
    Designation Quantity Weight (kg) Number of rungs Ladder length (m) Max. pit depth with angle of inclination =alpha (m) Amount of spacers
    		0361150010 3,75 5 1,50 0,400 4
    		0361180010 5,00 6 1,80 0,700 4
    		0361200010 - 7 2,00 - 4
    		0361250010 - 8 2,50 1,400 4
    		0361300010 - 11 3,00 1,900 4
    		0361360010 7,70 12 3,60 2,500 4
    		0361420010 8,70 14 4,20 3,000 6
    		0361530010 11,50 18 5,30 - 6
    		0361586010 12,60 20 5,86 - 8
    compliant with EN 81 and EN 131, with 4 mounting brackets and fixing material.
