With spacers
Pit ladder type B, 3,00 m EN 81-20
Order no.: 0361300010
Materials / corrosion protection: | extruded aluminium profile |
Weight (kg): | 6,80 |
Exterior ladder width (mm): | 350 |
Number of rungs: | 11 |
Ladder length (m): | 3,00 |
Ladder application: | stationary/shaft mounting |
DIN EN 81-20/50 compliant: | yes |
Stile dimension (mm): | 50 x 25 |
Design-related angle of inclination alpha: | 90° |
Interior ladder width (mm): | 300 |

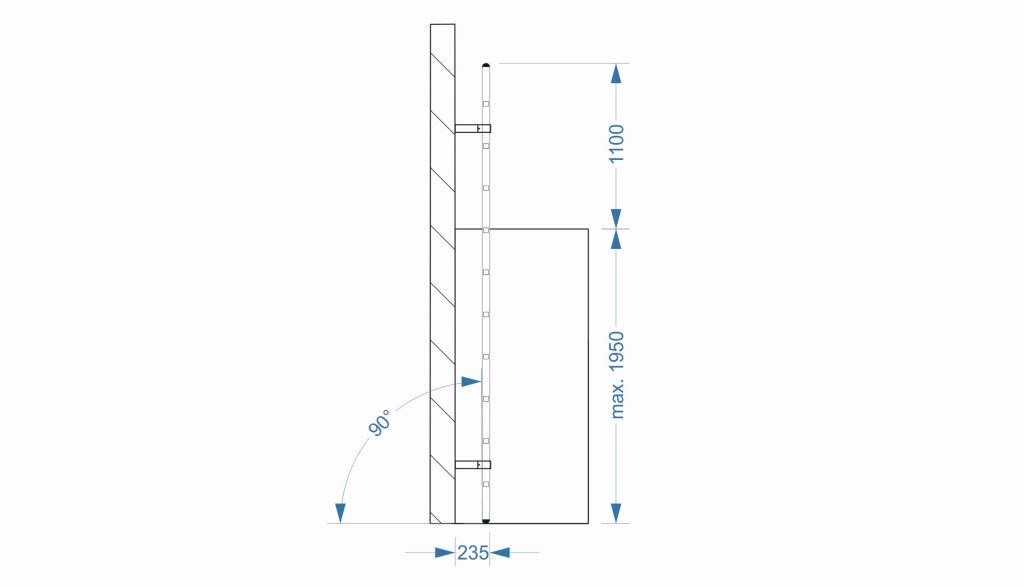

Max. pit depth with angle of inclination =alpha (m): | 1,900 |
Rung dimension/rung depth (mm): | 29 x 29 |
Amount of spacers: | 4 |
Description:
compliant with EN 81 and EN 131, with 4 mounting brackets and fixing material
ladder stringer dimension 58x25 mm
