Stingl mobil PANO elevated platform
Stingl mobil PANO elevated platform 730/1000-2000
Order no.: 16001072001
| platform width/panel length (mm): | 730 |
| platform depth (mm): | 1000 - 2000 |
| variant work platform: | elevated platform |
| max distance to shaft wall (mm): | 1050 |
| load max. per m²/level (kg): | 300 |
| efffective platform width (mm): | 550 |
| set of stowage boxes (optional): | 3-part |
| load class: | 4 |
| clear walking height bottom (mm): | 1120 |
| min. clear floor height (mm): | 2400 |
| clear opening height (mm): | 2250 |
| clear walking width (mm): | 395 |
| minimum requirement for door sills vert./horiz. [kN]: | 0,6 / 0,3 |
| minimum requirement for horizontal door lintel (kN): | 0,300 |
| min. door opening width (mm): | 710 |
| with fall protection (top): | yes |
| with fall protection (bottom): | no |
| panel kit: | 730 |
| upper platform level (mm): | 1180 |
| max. shaft width (mm): | 3100 |
| standard height front vertical (mm): | 2385 |
| rise bottom platform level (mm): | 140 |
| overlap front vertical (mm): | 100 |
Description:

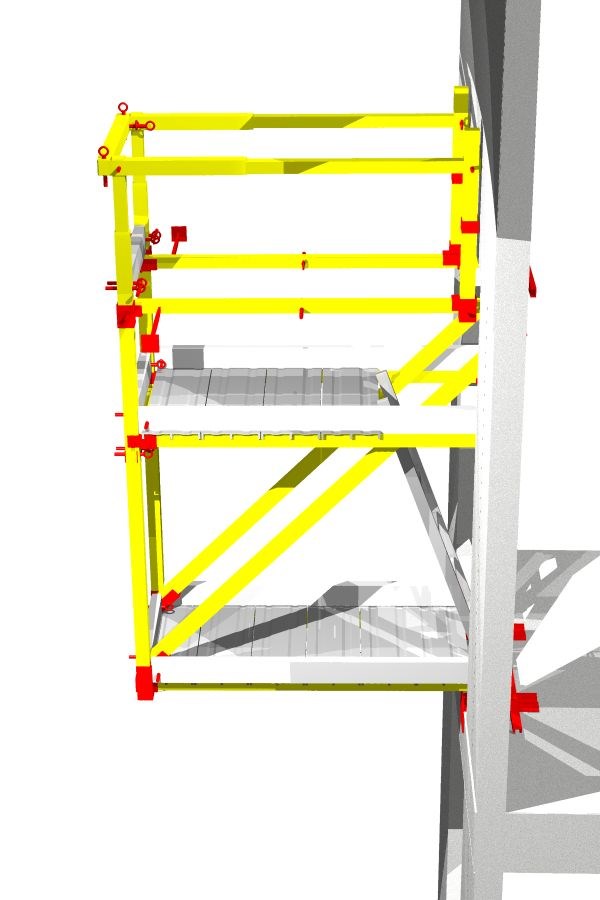

Stingl mobil PANO, made of glass reinforced polyester GRP, with elevated platform, for shaft depths of 1000-2000 mm, with floor panels 700 mm wide (upper edge floor level), at working level 730 mm width incl. side protection and accessories.
1 -
10
from
12
Variants
Product
- platform width/panel length (mm)
- efffective platform width (mm)
- set of stowage boxes (optional)
- clear walking width (mm)
- min. door opening width (mm)
Price
Quantity
Stingl mobil PANO elevated platform 730/1000-2000
Order no.: 16001072001
- 730
- 550
- 3-part
- 395
- 710
6,188.00 € / Piece
including value added tax
Stingl mobil PANO elevated 830/1000-2000
Order no.: 16001082001
- 830
- 650
- 3-part
- 495
- 810
6,188.00 € / Piece
including value added tax
Stingl mobil PANO elevated 1130/1000-2000
Order no.: 16001112001
- 1130
- 950
- 3-part
- 795
- 1100
6,426.00 € / Piece
including value added tax

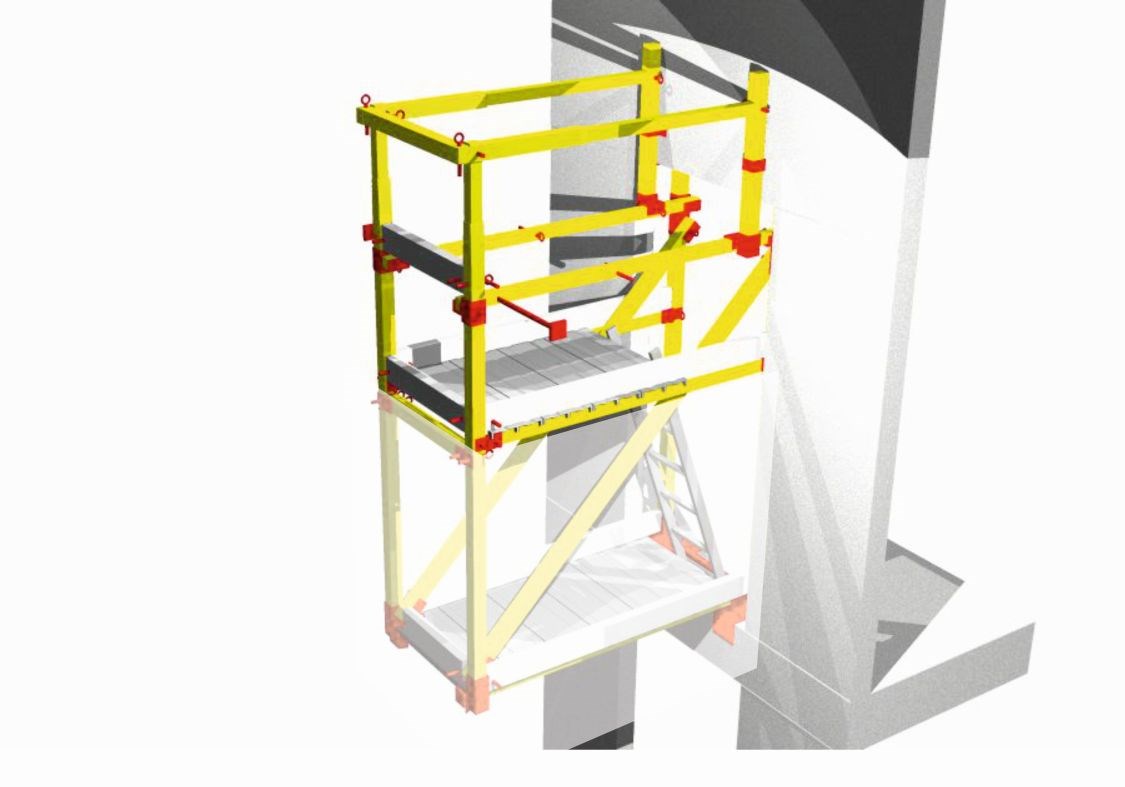

Stingl mobil PANO 730/1000-2000 upper platform
Order no.: 16007072003
- 730
- 550
- 1-part
- 395
- 710
1,547.00 € / Piece
including value added tax
Stingl mobil PANO 830/1000-2000 upper platform
Order no.: 16007082001
- 830
- -
- -
- -
- -
1,874.25 € / Piece
including value added tax
Stingl mobil PANO 830/1000-2000 upper platform
Order no.: 16007082005
- 830
- -
- -
- -
- -
1,011.50 € / Piece
including value added tax
Stingl mobil PANO 1130/1000-2000 upper platform
Order no.: 16007112001
- 1130
- -
- -
- -
- -
2,023.00 € / Piece
including value added tax
Stingl mobil PANO, side protection, lateral
Order no.: 16015000001
- -
- -
- -
- -
- -
297.50 € / Piece
including value added tax
Set of boxes for Stingl PANO 2-part
Order no.: 16027070001
- -
- -
- -
- -
- -
708.05 € / Set
including value added tax
Transport box type 4
Order no.: 08004102001
- -
- -
- -
- -
- -
249.90 € / Piece
including value added tax
Stingl mobil PANO, made of glass reinforced polyester GRP, with elevated platform, for shaft depths of 1000-2000 mm, with floor panels 700 mm wide (upper edge floor level), at working level 730 mm width incl. side protection and accessories.
