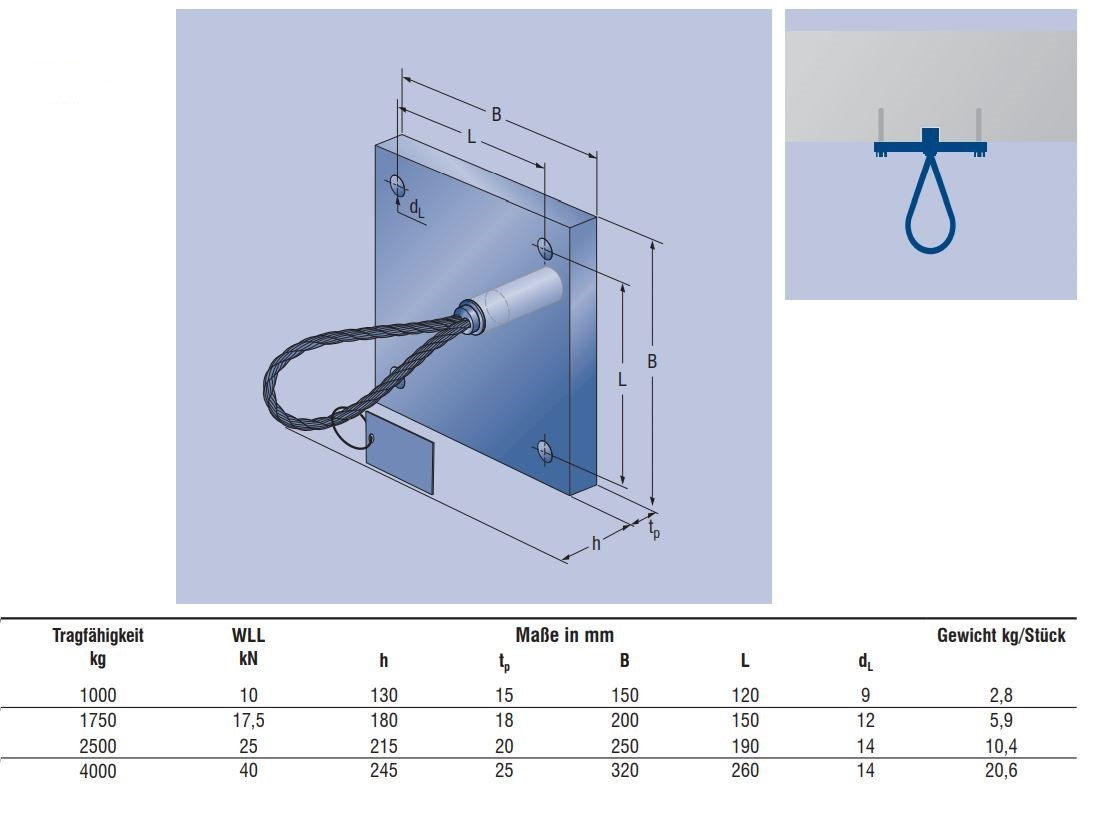

lifting loop LSP for dowel mounting
Pfeifer lifting loop LSP, working load 10 kN
Order no.: 43102010001
| load absorption of: | material loads |
| type of installation: | dowel mounting |
| max. working load (kg): | 1000 |
| connection type: | screwed |
| load hook tested according to: | EC Machinery Directive |
| measures base plate (LxWxH mm): | 150x150x15 |
| installation height h (mm): | 130 |
| Installation height tp (mm): | 15 |
Description:
working load 1000 kg, consisting of mounting plate 150 x 150 x 15 mm with Pfeifer welding socket, flexible steel cable, galvanized
1 -
4
from
4
Variants
Product
- max. working load (kg)
- measures base plate (LxWxH mm)
- installation height h (mm)
- Installation height tp (mm)
Price
Quantity
Pfeifer lifting loop LSP, working load 10 kN
Order no.: 43102010001
- 1000
- 150x150x15
- 130
- 15
175.41 € / Piece
including value added tax
Pfeifer lifting loop LSP, working load 17,5 kN
Order no.: 43102017501
- 1750
- 200x200x18
- 180
- 18
189.45 € / Piece
including value added tax
Pfeifer lifting loop LSP, working load 25 kN
Order no.: 43102025001
- 2500
- 250x250x20
- 215
- 20
248.71 € / Piece
including value added tax
Pfeifer lifting loop LSP, working load 40 kN
Order no.: 43102040001
- 4000
- 320x320x25
- 245
- 25
358.79 € / Piece
including value added tax
working load 1000 kg, consisting of mounting plate 150 x 150 x 15 mm with Pfeifer welding socket, flexible steel cable, galvanized
