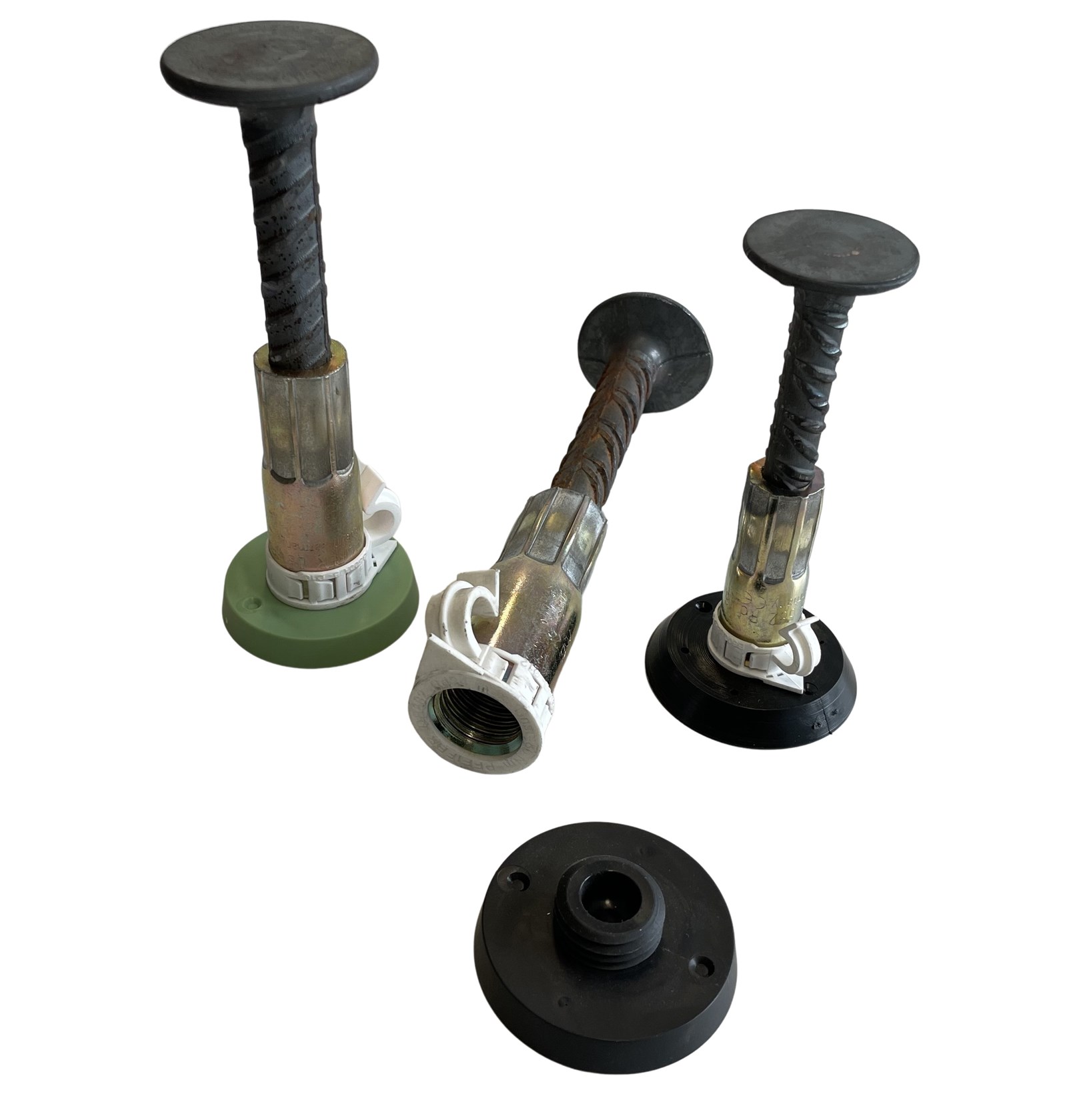

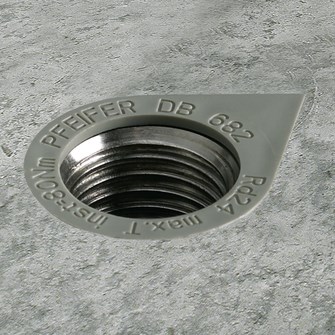

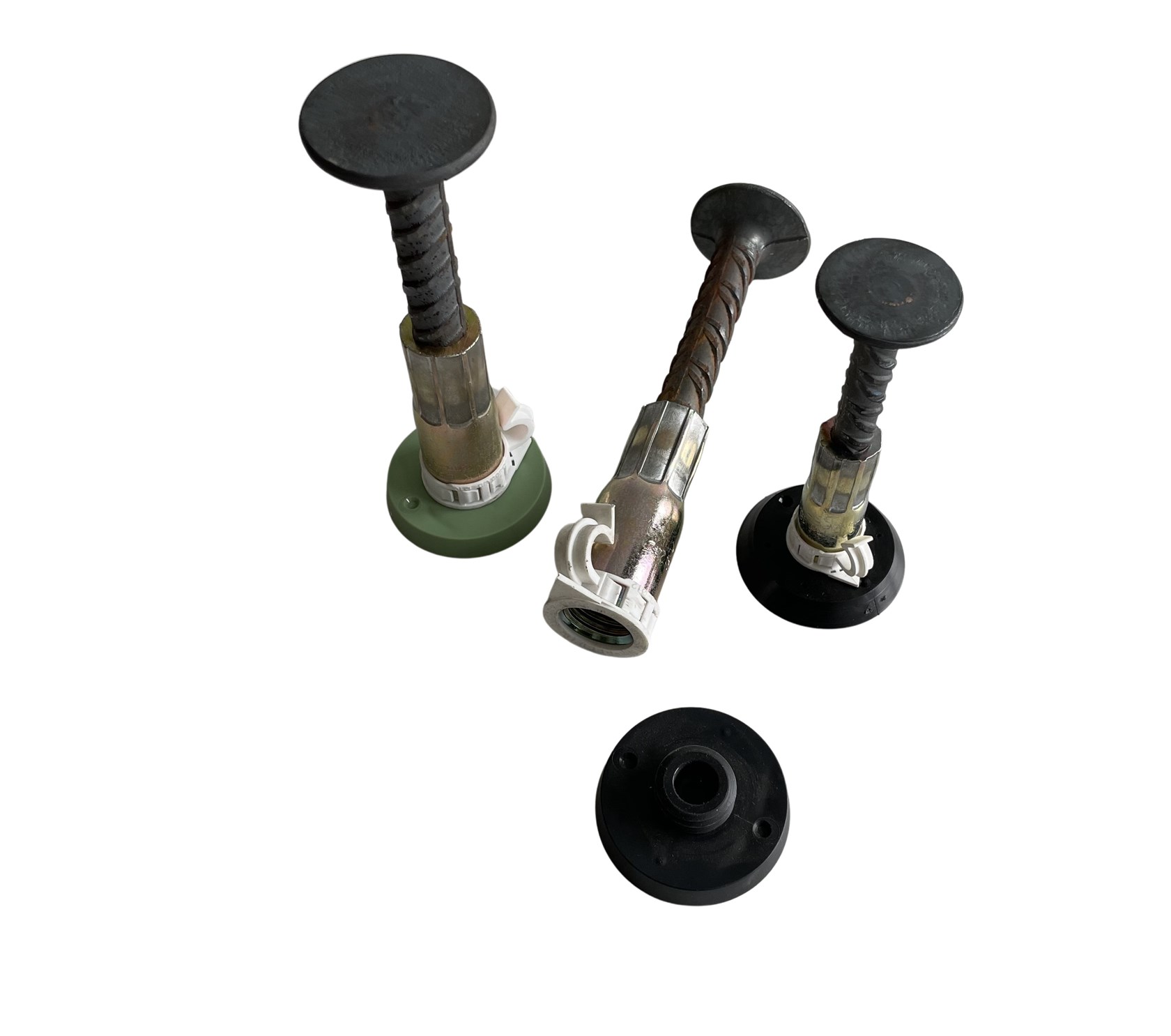

Foot anchor DB 682
Foot anchor DB 682 Rd 12
Order no.: 4040012000
| load absorption of: | material loads |
| load hook tested according to: | DB 682 |
| thread form: | Round thread Rd |
| type of installation: | embedded in concrete |
Description:
galvanised sleeve, with mounted direction clip white and PVC nail plate
1 -
5
from
5
Variants
Product
- installation height L (mm)
- minimum ceiling thickness (mm)
- thread size (Rd)
- outside diameter (mm)
Price
Quantity
Foot anchor DB 682 Rd 12
Order no.: 4040012000
- 80
- mind. 100 mm
- Rd 12 x 1,75
- 15
14.40 € / Piece
including value added tax
Foot anchor DB 682 Rd 16
Order no.: 4040016000
- 120
- mind. 140 mm
- Rd 16 x 2,00
- 21
14.40 € / Piece
including value added tax
Foot anchor DB 682 Rd 20
Order no.: 4040020000
- 150
- mind. 170 mm
- Rd 20 x 2,50
- 27
14.40 € / Piece
including value added tax
Foot anchor DB 682 Rd 24
Order no.: 4040024000
- 180
- mind. 210 mm
- Rd 24 x 3,00
- 31
14.40 € / Piece
including value added tax
Foot anchor DB 682 Rd 30
Order no.: 4040030000
- 220
- mind. 250 mm
- Rd 30 x 3,50
- 40
14.40 € / Piece
including value added tax
galvanised sleeve, with mounted direction clip white and PVC nail plate
