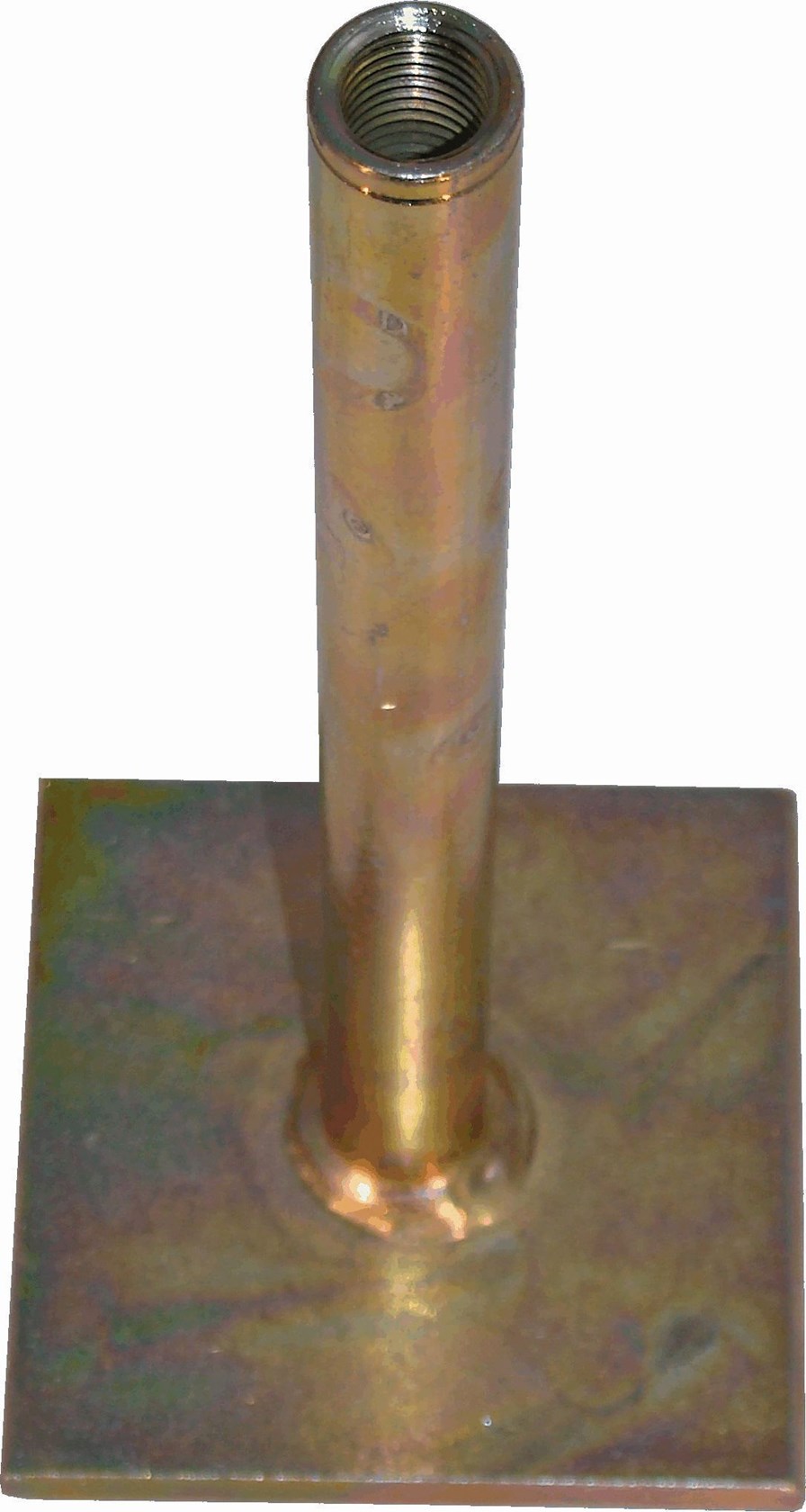

Flat steel anchor long
Flat steel anchor long, working load 12 kN
Order no.: 0402110012

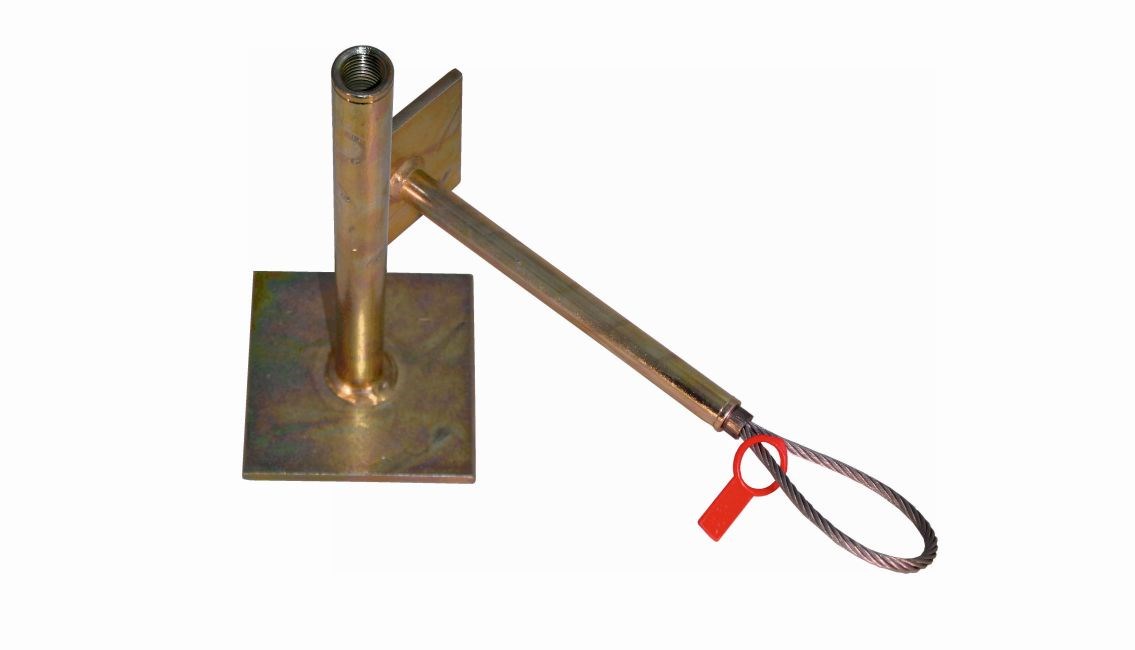

combination lifting loop with: | flat steel anchor |
connection type: | screwed |
load absorption of: | material loads |
thread form: | Round thread Rd |
Complete product features:
thread form: | Round thread Rd |
combination lifting loop with: | flat steel anchor |
load absorption of: | material loads |
connection type: | screwed |
installation height L (mm): | 250 |
thread size (Rd): | Rd 16 x 2,0 |
minimum ceiling thickness (mm): | <250 |
outside diameter (mm): | 21 |
type of installation: | through-type mounting |
max. working load (kg): | 1200 |
Description:
Rd16, sleeve and flat steel galvanised, sleeve 250 mm in length, including data sign.
Attention: reduced capacity in inclined pull scenarios according to installation instructions!
