With a joint pair
Order no.: 0370225010
| Exterior ladder width (mm): | 350 |
| Interior ladder width (mm): | 300 |
| Materials / corrosion protection: | extruded aluminium profile |
| Rung dimension/rung depth (mm): | 29 x 29 |
Complete product features:
| Exterior ladder width (mm): | 350 |
| Interior ladder width (mm): | 300 |
| Rung dimension/rung depth (mm): | 29 x 29 |
| Materials / corrosion protection: | extruded aluminium profile |
| DIN EN 81-20/50 compliant: | yes |
| Hook profile variants: | 1, rigid hang-in depth 35 mm |
| Ladder application: | stationary, foldable for mounting |
| Stile dimension (mm): | 58 x 25 |
| Number of pairs of hinges: | 0 |
| Weight (kg): | 10,00 |
| Ladder length (m): | 2,25 |

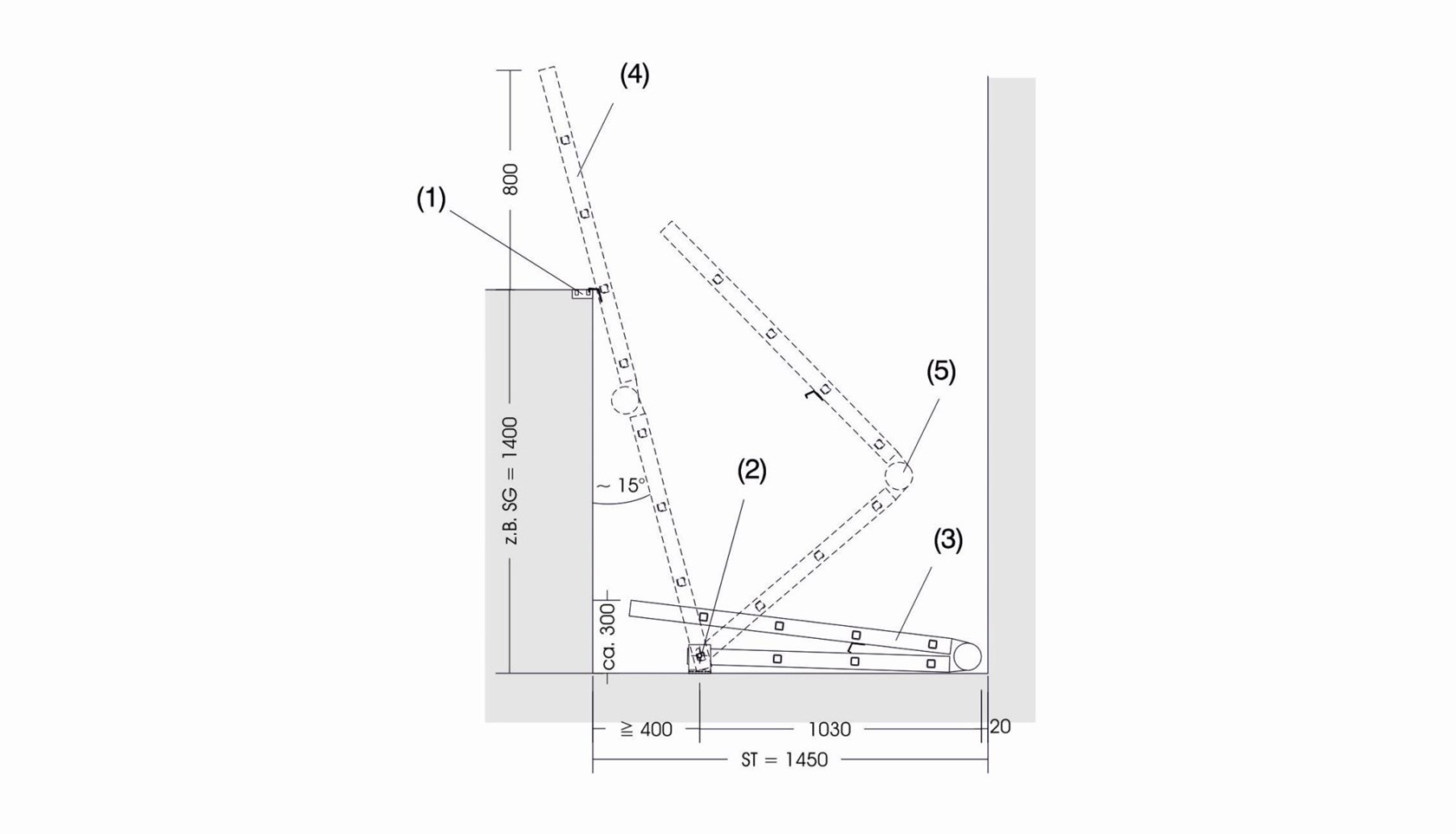

| Max. pit depth with angle of inclination 65° (m): | 0,94 |
| Max. pit depth with angle of inclination 70° (m): | 1,01 |
| Max. pit depth with angle of inclination 75° (m): | 1,07 |
| Number of rungs: | 2x4 |
| Surveillance contact: | no |
| Packaging size (LxWxH) (mm): | 1290 x 460 x 300 |
Description:
Two-piece folding ladder type E, aluminum, ca. 2.25m long, complies with EN 81, ladder components comply with DIN and VBG 74, with adjustable mounting profile, steel hinges, steel jack and fixing material.
Two-piece folding ladder type E, aluminum, ca. 2.25m long, complies with EN 81, ladder components comply with DIN and VBG 74, with adjustable mounting profile, steel hinges, steel jack and fixing material.
Suitable accessories

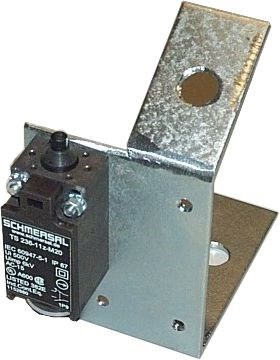

Metal support for pit ladder type E, with electrical safety switch
Hook profile variant 3, space-saving and tiltable

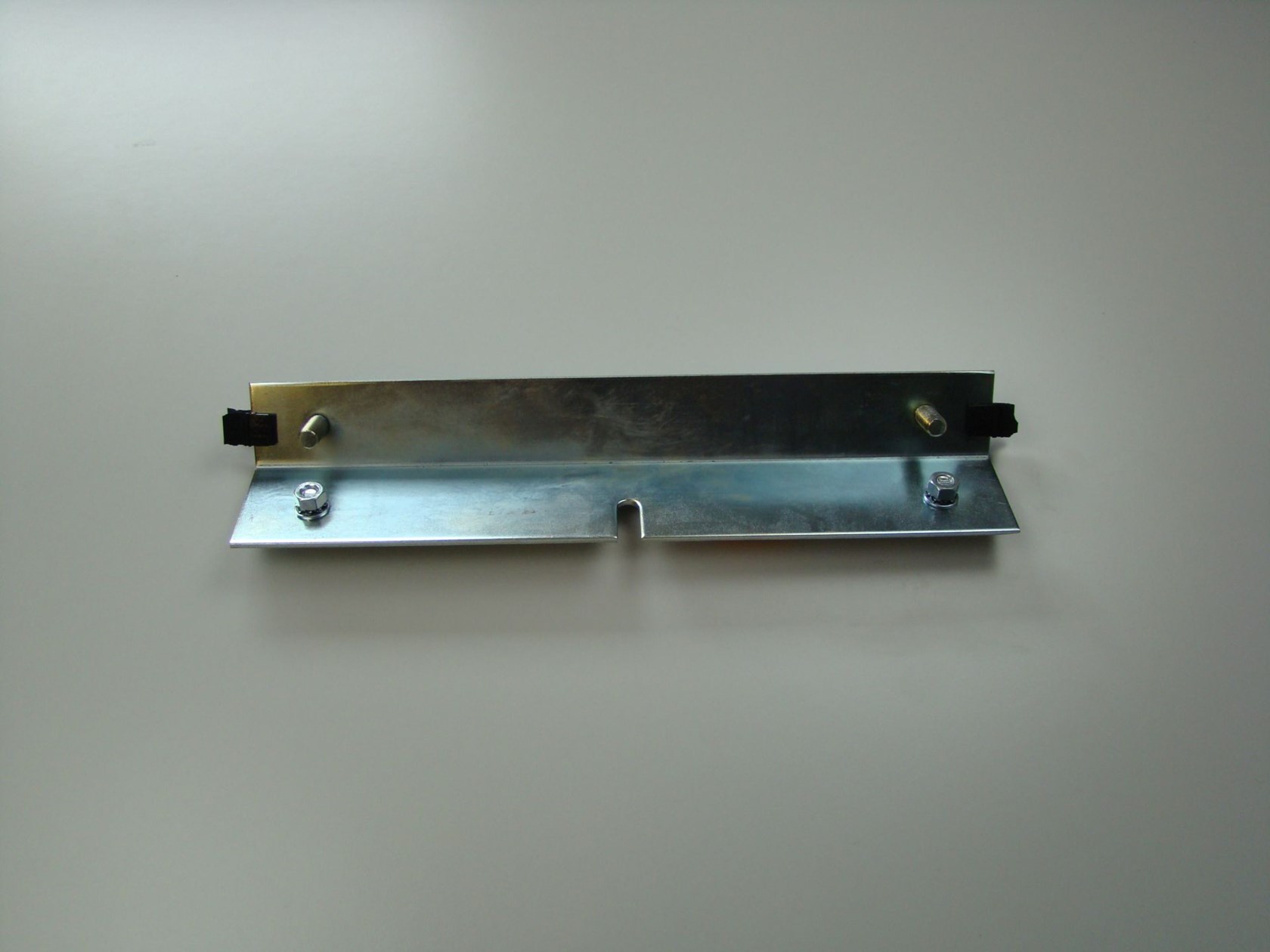

Hook profile variant 2, for revolving doors with 2 spigots
Hook profile variant 4, flexible hang-in depth from 48 to 68 mm

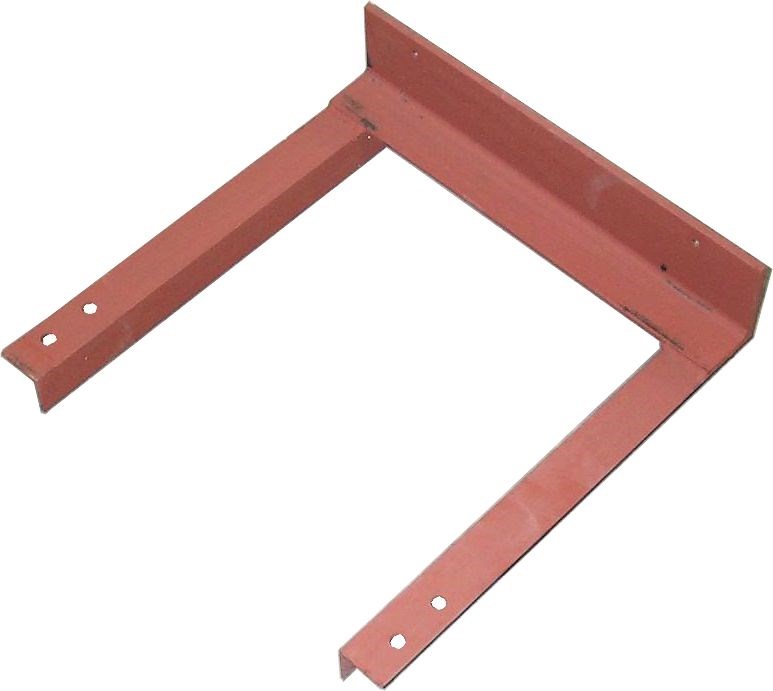

Wall-mounted adapter for pit ladder type E
Hook profile variant 1, rigid hang-in depth 35 mm
Possible alternatives
Metal support for pit ladder type E, with electrical safety switch
Hook profile variant 3, space-saving and tiltable
Hook profile variant 2, for revolving doors with 2 spigots
Hook profile variant 4, flexible hang-in depth from 48 to 68 mm
Wall-mounted adapter for pit ladder type E
Hook profile variant 1, rigid hang-in depth 35 mm
