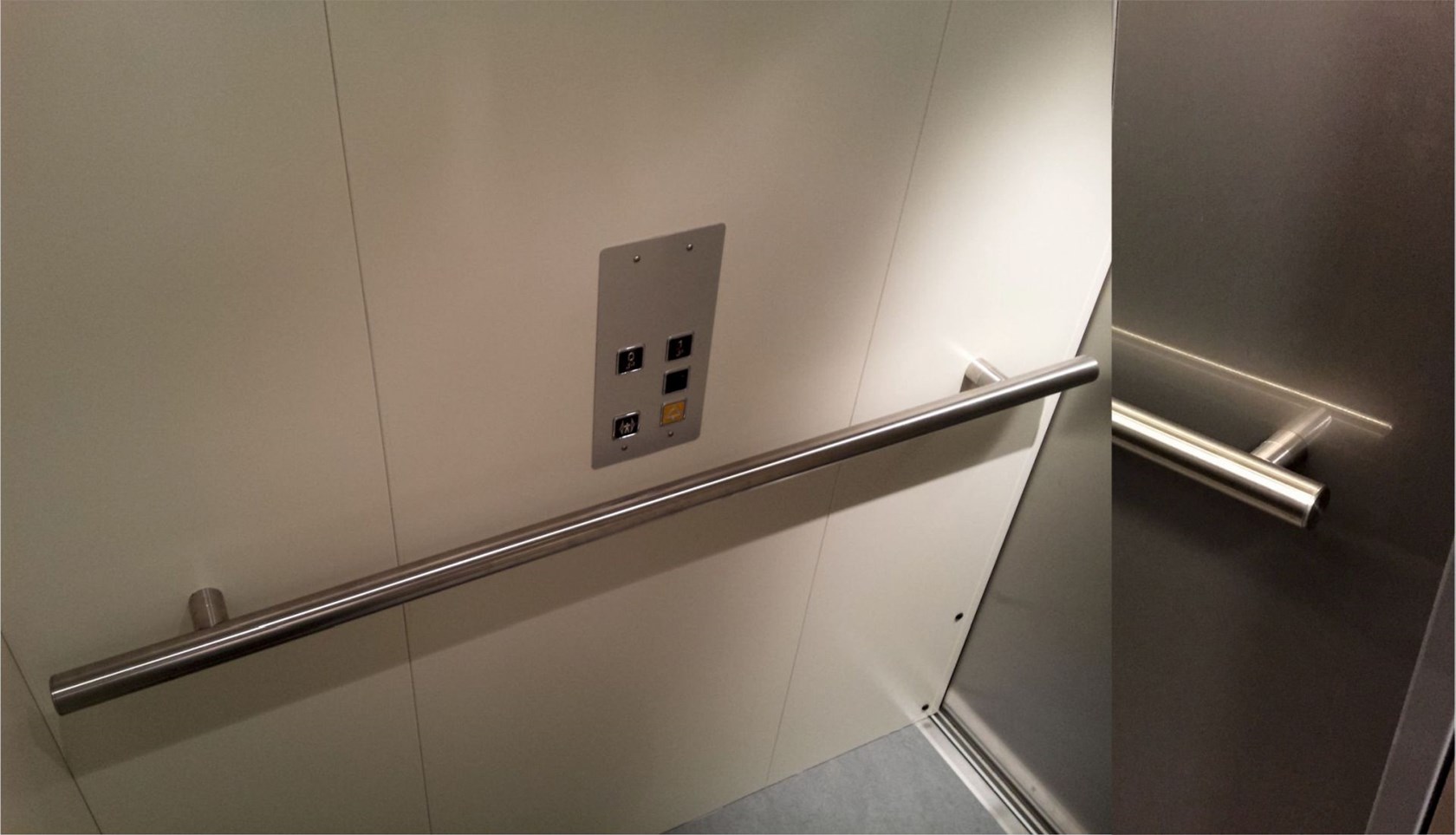

Straight handrails with brackets
straight handrails with e-li diameter 30mm 0-500 mm and 2 brackets
Order no.: 690121103000
material: | 1.4301 polished grit 240 |
handrail with e-li: | with misalignment compensation +/- 3,5 mm in all directions |

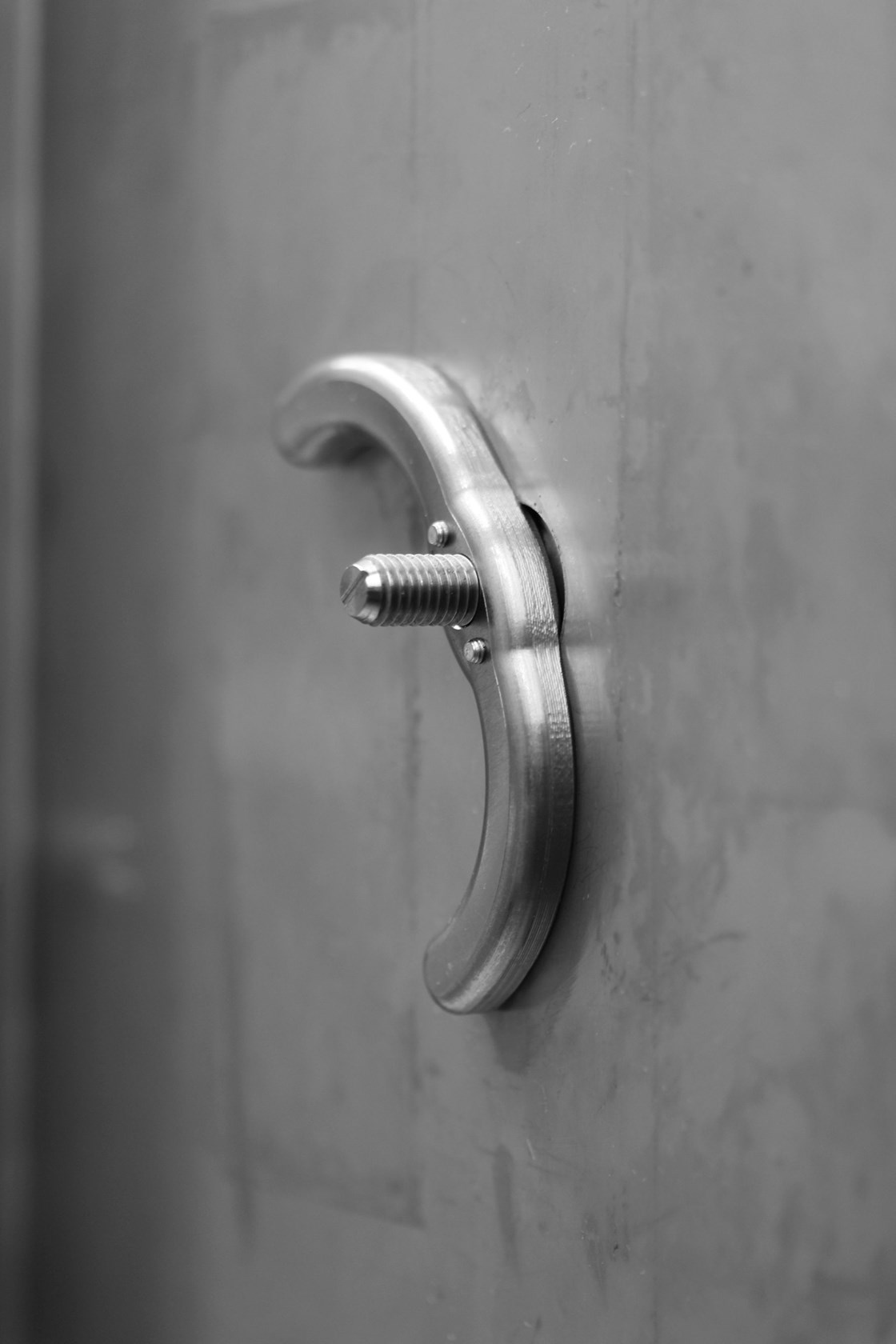

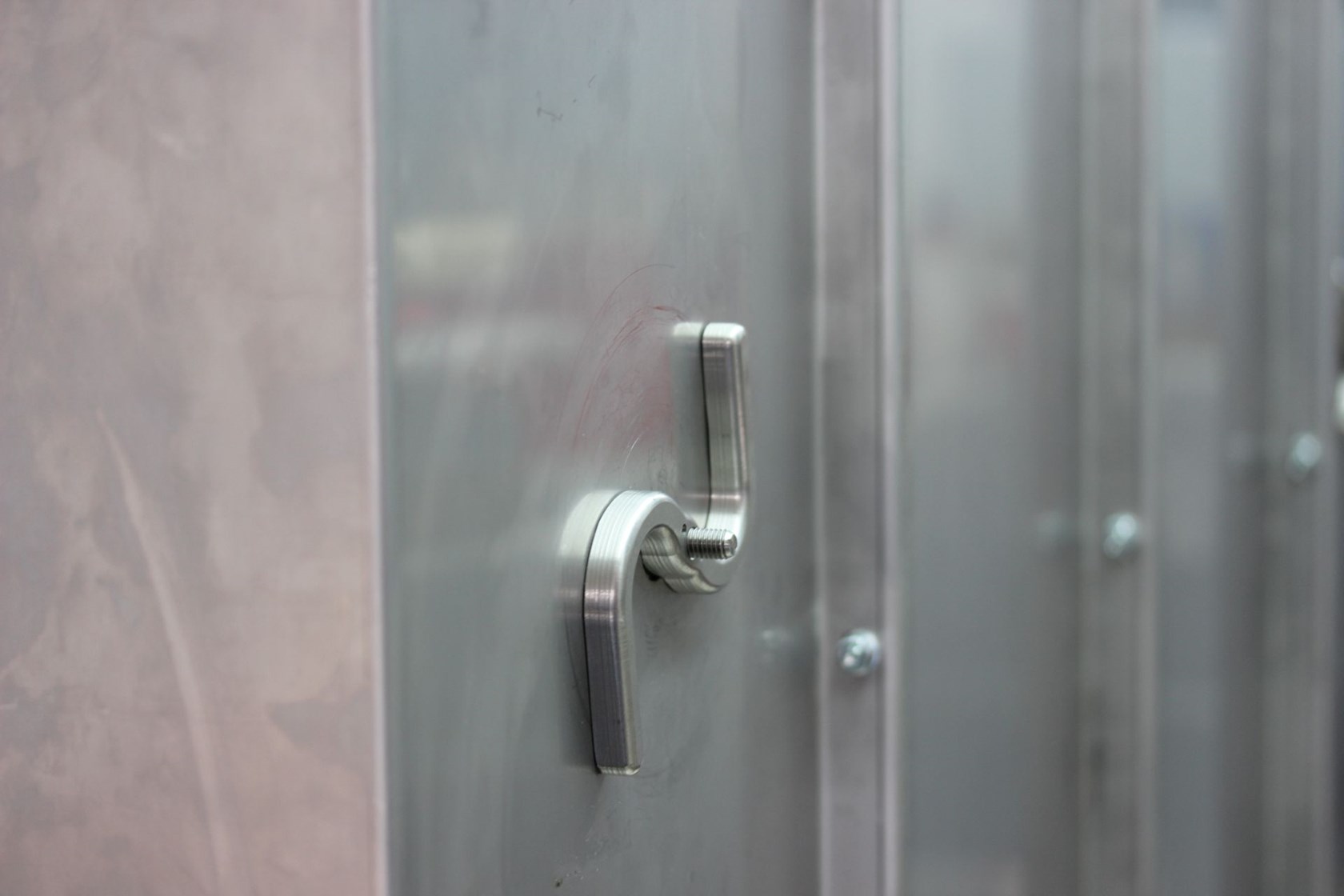

e-li incl. strong spine: | Ja (aktuell) |
end caps included: | Ja (aktuell) |
handrail completely assembled: | Ja (aktuell) |
assembly instructions included: | Ja (aktuell) |

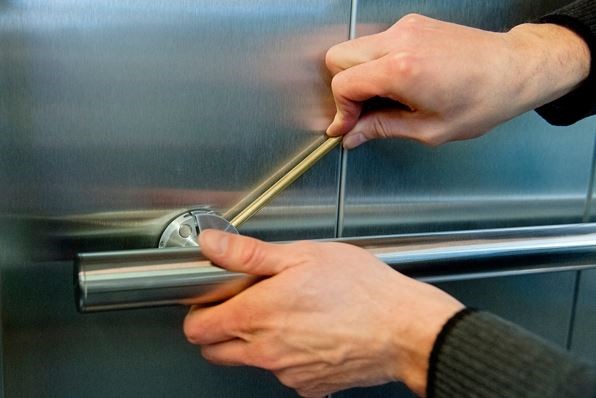

assembly aid included: | Ja (aktuell) |
length from - to (mm): | 0 - 500 |
tube diameter Ø (mm): | 30 |
brackets (number): | 2 |
Streckenartikel werden in separaten Warenkorb gespeichert!
Description:
Material: 1.4301 / AISI TB 304 polished (grain 240), Complete handrail with e-li and drilling misalignment of up to ± 3.5 mm in all directions, Equipment: installation instructions and installation tool
1 -
10
from
28
Variants
Designation | Quantity | handrail with e-li | length from - to (mm) | tube diameter Ø (mm) | brackets (number) | |||
---|---|---|---|---|---|---|---|---|
|
690121103000 |
|
with misalignment compensation +/- 3,5 mm in all directions | 0 - 500 | 30 | 2 | ||
|
690120103000 |
|
with misalignment compensation +/- 3,5 mm in all directions | 501 - 1000 | 30 | 2 | ||
|
690134103000 |
|
with misalignment compensation +/- 3,5 mm in all directions | 1001 - 1500 | 30 | 2 | ||
|
690133103000 |
|
with misalignment compensation +/- 3,5 mm in all directions | 1501 - 2000 | 30 | 3 | ||
|
690139103000 |
|
with misalignment compensation +/- 3,5 mm in all directions | 1501 - 2000 | 30 | 4 | ||
|
690146103000 |
|
with misalignment compensation +/- 3,5 mm in all directions | 2001 - 2500 | 30 | 3 | ||
|
690147103000 |
|
with misalignment compensation +/- 3,5 mm in all directions | 2001 - 2500 | 30 | 4 | ||
|

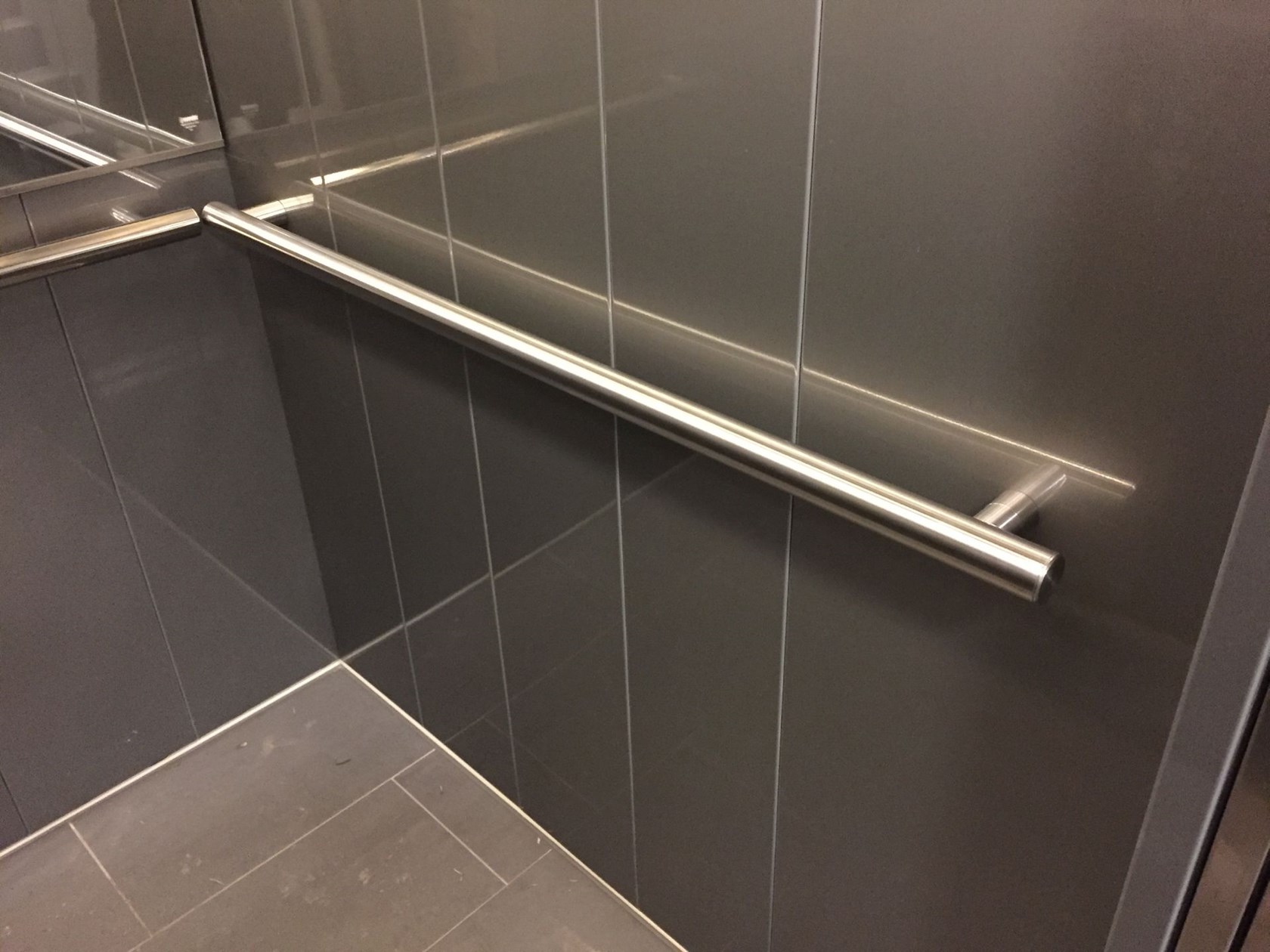

690221103500 |
|
with misalignment compensation +/- 5,0 mm in all directions | 0 - 500 | 35 | 2 | ||
|
690220103500 |
|
with misalignment compensation +/- 5,0 mm in all directions | 501 - 1000 | 35 | 2 | ||
|
690234103500 |
|
with misalignment compensation +/- 5,0 mm in all directions | 1001 - 1500 | 35 | 2 |
Material: 1.4301 / AISI TB 304 polished (grain 240), Complete handrail with e-li and drilling misalignment of up to ± 3.5 mm in all directions, Equipment: installation instructions and installation tool
