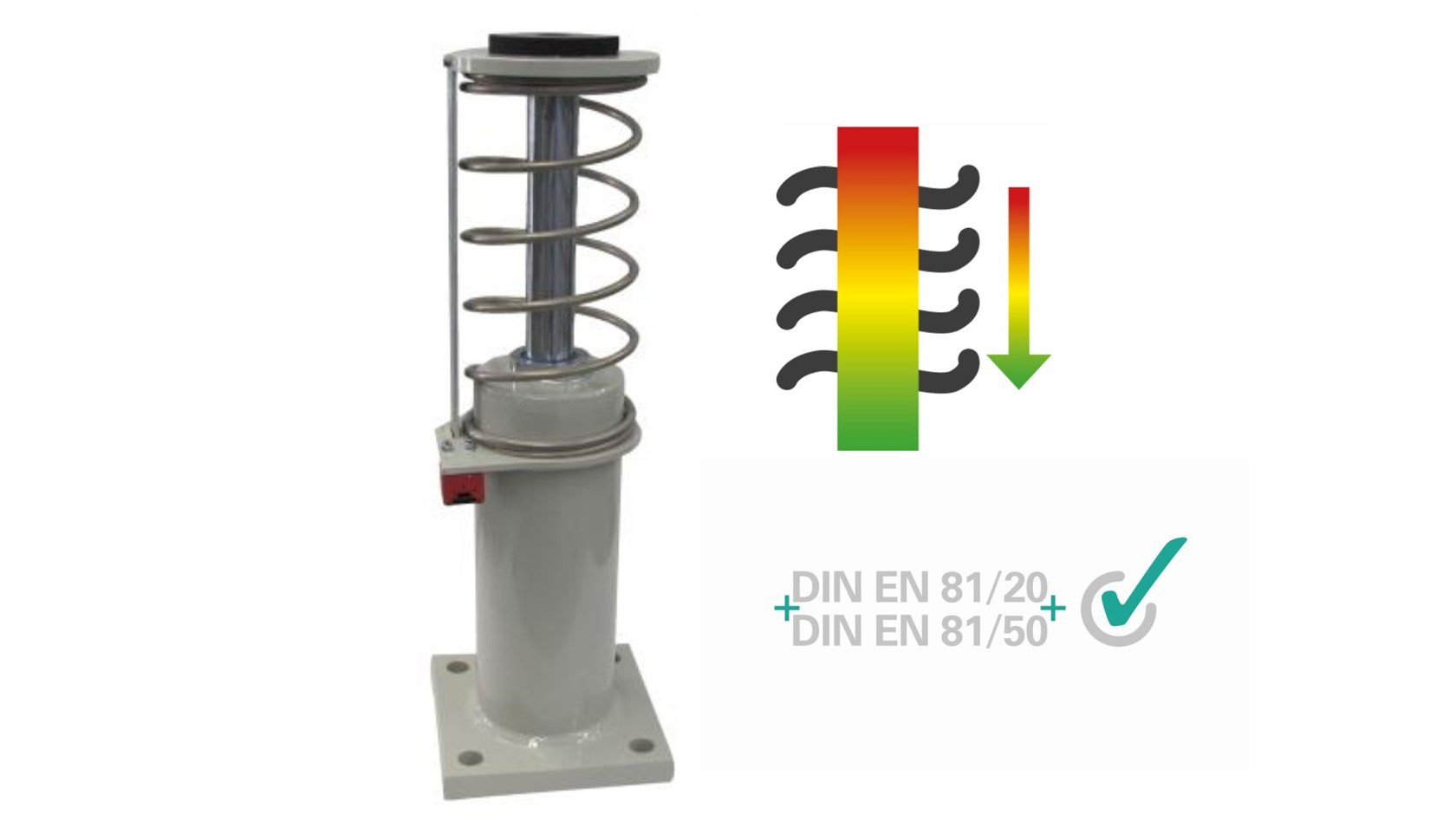

Lift buffers DIN EN 81-20/-50 compliant

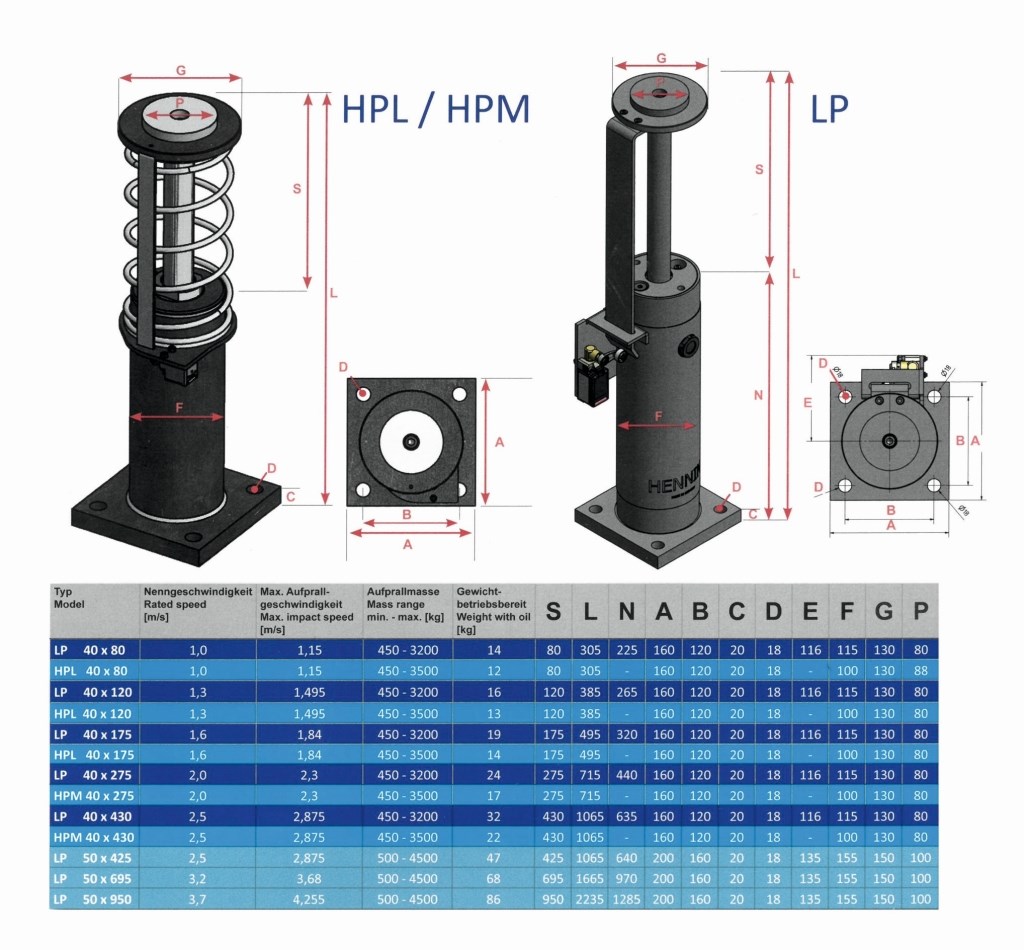

Lift buffer Performance stroke 80, EN 81-20
Order no.: 0990400800
Serial number: HPL 40 x 80
| DIN EN 81-20/50 compliant: | yes |
| impact mass (kg): | 450 - 3500 kg |
| weight incl. oil (kg): | 12 |
| upstroke (mm): | 80 |
| max. impact speed (m/s): | 1,150 |
| max. energy absorption (kNm): | 5,070 |
| max. buffer force (kN): | 95 |
| nominal speed (m/s): | 1,00 |
Streckenartikel werden in separaten Warenkorb gespeichert!
Description:
Filling with oil
Stroke 80 mm
Nominal speed 1,0
Max. impact speed 1,15 m/s
Impact mass 450-3500 kg
1 -
8
from
8
Variants
Product
- impact mass (kg)
- weight incl. oil (kg)
- upstroke (mm)
- max. buffer force (kN)
- nominal speed (m/s)
Price
Quantity
Lift buffer Performance stroke 80, EN 81-20
Order no.: 0990400800
Serial number: HPL 40 x 80
- 450 - 3500 kg
- 12
- 80
- 95
- 1,00
233.84 € / Piece
including value added tax
Lift buffer Performance stroke 120, EN 81-20
Order no.: 0990401200
Serial number: HPL 40 x 120
- 450 - 3500
- 13
- 120
- 95
- 1,30
236.93 € / Piece
including value added tax
Lift buffer Performance stroke 175, EN 81-20
Order no.: 0990401750
Serial number: HPL 40 x 175
- 450 - 3500
- 14
- 175
- 95
- 1,60
243.38 € / Piece
including value added tax
Lift buffer Performance stroke 275, EN 81-20
Order no.: 0990402750
Serial number: HPM 40 x 275
- 450 - 3500
- 17
- 275
- 95
- 2,00
294.76 € / Piece
including value added tax
Lift buffer Performance stroke 430, EN 81-20
Order no.: 0990404300
Serial number: HPM 40 x 430
- 450 - 3500
- 22
- 430
- 95
- 2,50
360.14 € / Piece
including value added tax
Lift buffer Performance stroke 425, EN 81-20
Order no.: 0990504250
Serial number: LP 50 x 425
- 500 - 4500
- 47
- 425
- -
- 2,50
735.48 € / Piece
including value added tax
Lift buffer Performance stroke 695, EN 81-20
Order no.: 0990506950
Serial number: LP 50 x 695
- 500 - 4500
- 68
- 695
- -
- 3,20
883.16 € / Piece
including value added tax
Lift buffer Performance stroke 950, EN 81-20
Order no.: 0990509500
Serial number: LP 50 x 950
- 500 - 4500
- 86
- 950
- -
- 3,70
1,275.99 € / Piece
including value added tax
Filling with oil
Stroke 80 mm
Nominal speed 1,0
Max. impact speed 1,15 m/s
Impact mass 450-3500 kg
