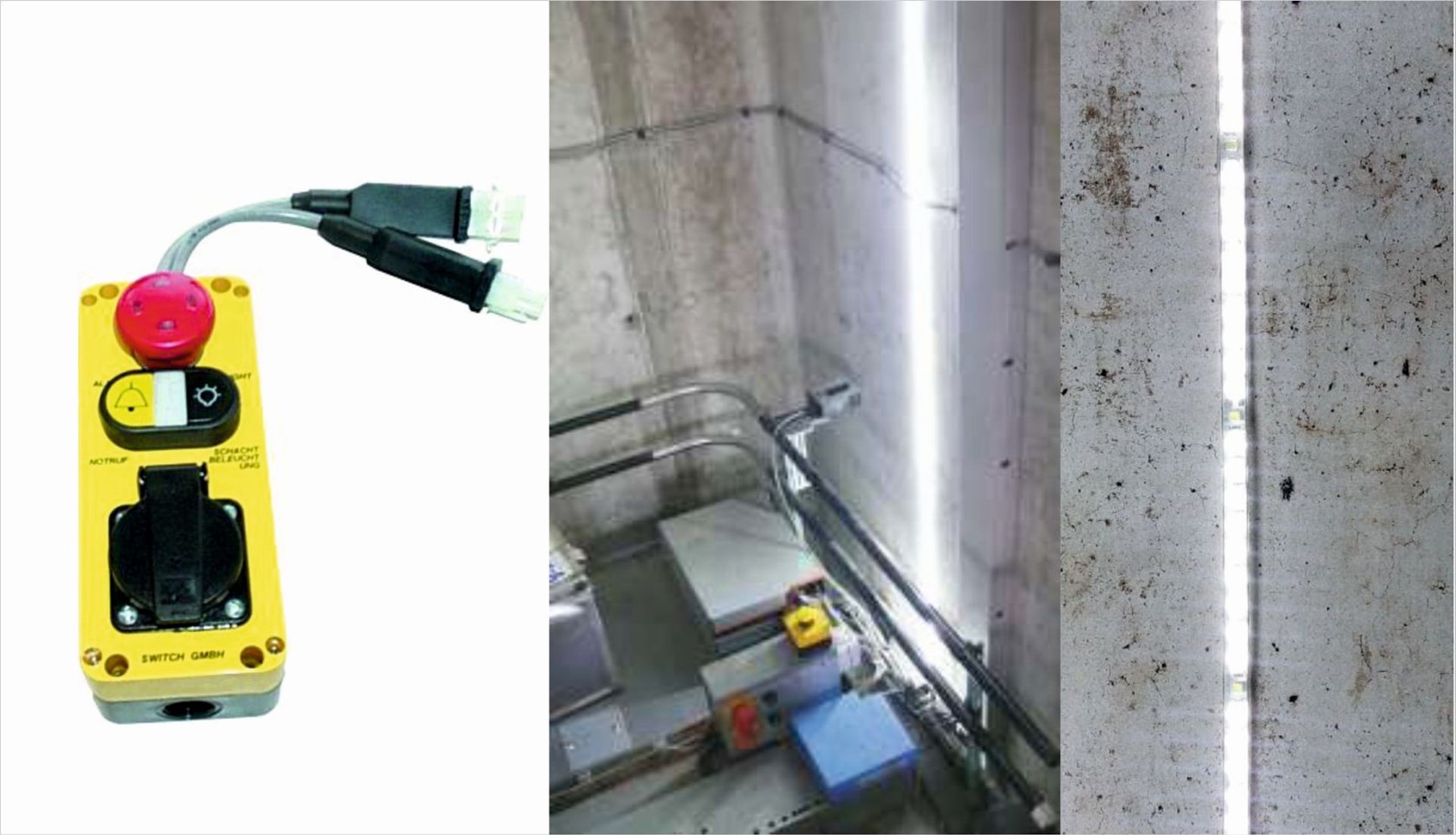

LED Shaft lighting pre-configured without emergency incl 4-function pit control box machine room bottom
LED ribbon with 4-function pit control box up to 8,0 m
Order no.: 91720839080
| installation height L (mm): | 15 |
| connection cable length (m): | 10 |
| pit control unit: | 4 - stellig |
| machine room: | below |
| shaft height up to (m): | 8,000 |
| colour temperature (K): | 6000 - 6500 |
| luminosity (Lux): | 80 |
| operating temperature (from - to) °C: | -20° - +50 |
| fire characteristic: | self-extinguishing |
| weight (g/m): | 115 |
| dimensions PVC cover (WxH): | 14x7 |
| type of protection light band: | IP65 |
| type of protection: | 2 |
| supply voltage (V DC): | 230 |
Variant selection:
Description:
with 10,0 m supply cable, machine room bottom
