Ventilation and smoke extraction hood
Jalousie flap JK-165 Silent 0,10m²
Order no.: 9630110400
| free geometric cross-section (m²): | 0,100 |
| low noise: | yes |
| total depth approx. (mm): | 175 |
| nominal size (mm): | 360 x 300 |
| Materials / corrosion protection: | steel galvanized |
| Norm: | EN 12101-2 |
Streckenartikel werden in separaten Warenkorb gespeichert!
Description:

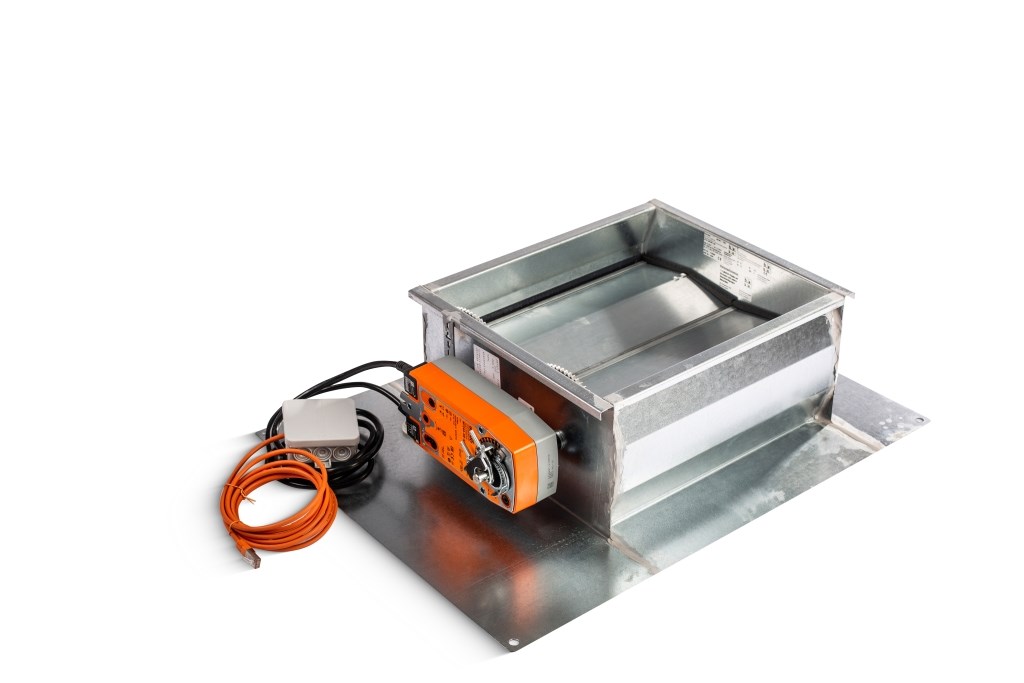

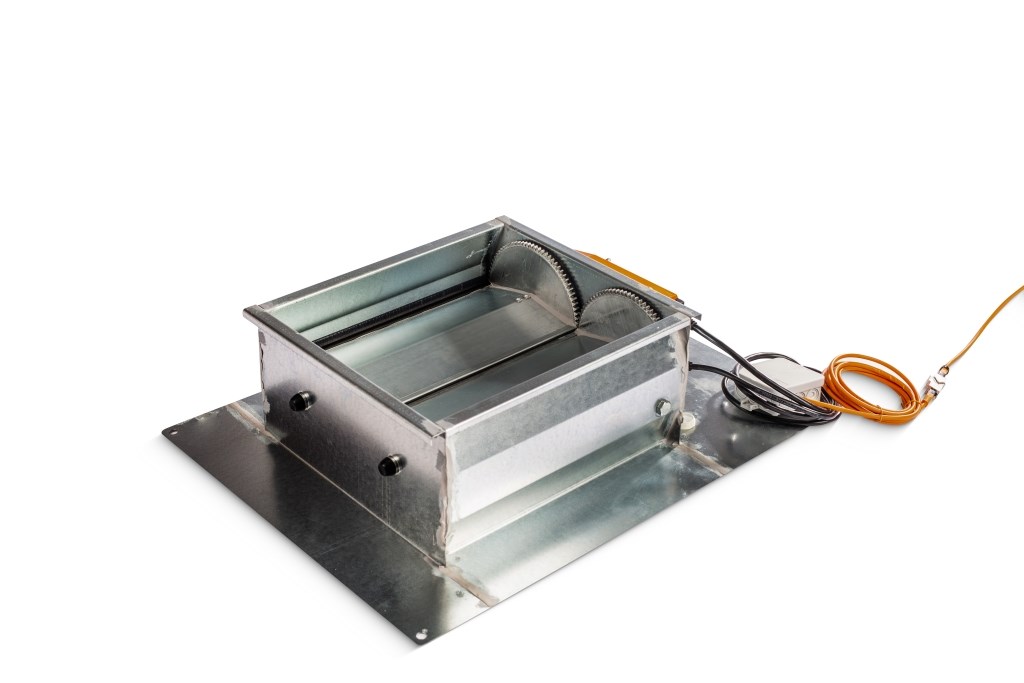

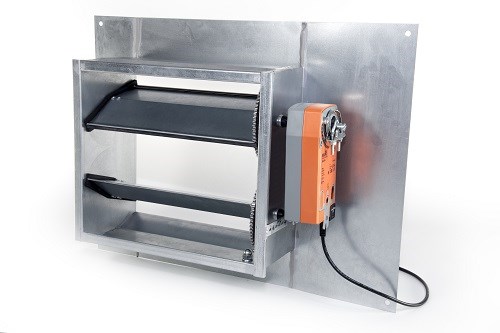

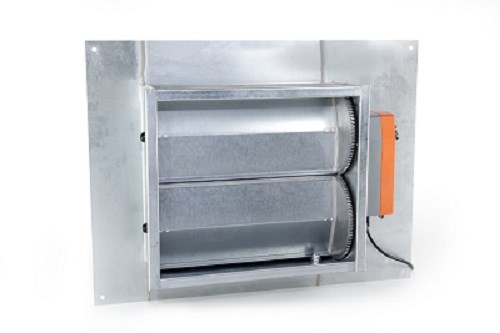

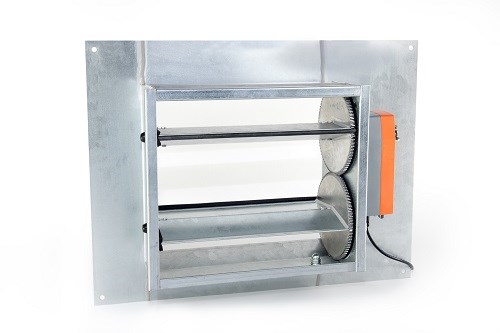

Multileaf damper for the removal of fire gases and natural ventilation of the shaft.

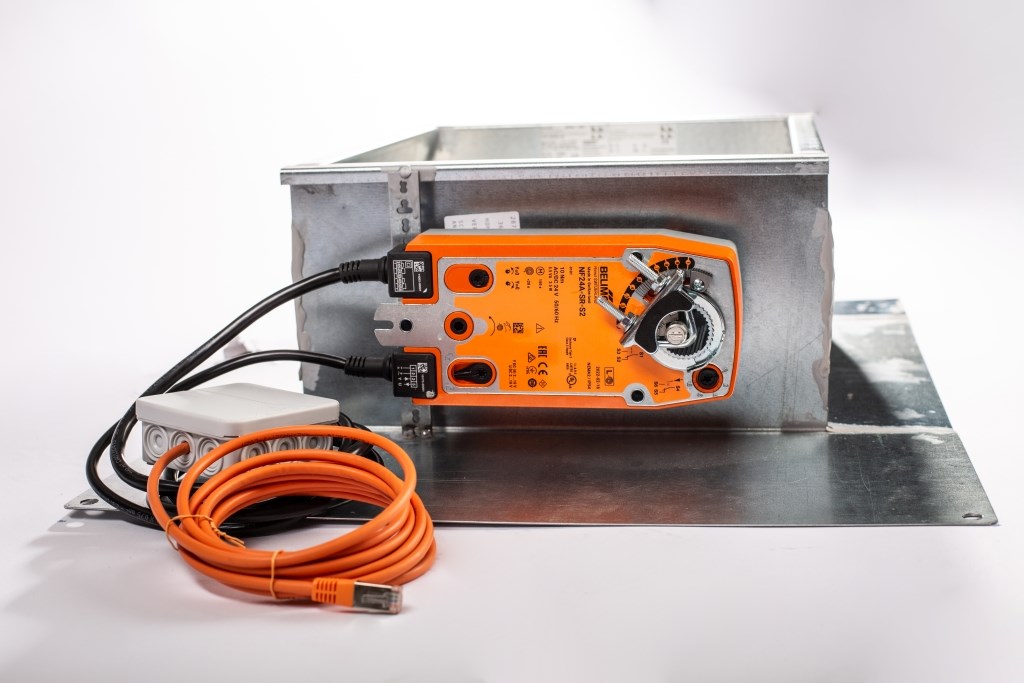

The actuator of the shutter is equipped with an integrated limit switch for determining the ""damper open or closed"" position, for forwarding and evaluation by an external body (building- or lift control). In addition, the actuator runs almost noiselessly in ventilation mode and is not audible in adjacent rooms.
Net size: 360x300 mm
Builder´s opening: 520x360 mm installation in the reveal
free geometric cross-section 0,10m²
including mounting plate for flush mounting in the builder´s opening provided by the customer.
Total depth approx. 175 mm
1 -
10
from
26
Variants
Product
- free geometric cross-section (m²)
- total depth approx. (mm)
- base height (mm)
- bird protection
- rough opening (mm)
Price
Quantity
Jalousie flap JK-165 Silent 0,10m²
Order no.: 9630110400
- 0,100
- 175
- -
- -
- -
948.43 € / Piece
including value added tax
Jalousie flap JK-165 Silent 0,11m²
Order no.: 9630110401
- 0,110
- 175
- -
- -
- -
1,015.07 € / Piece
including value added tax
Jalousie flap JK-165 Silent 0,18m²
Order no.: 9630110402
- 0,180
- 175
- -
- -
- -
1,103.13 € / Piece
including value added tax
Jalousie flap JK-165 Silent 0,24m²
Order no.: 9630110420
- 0,240
- 175
- -
- -
- -
1,191.19 € / Piece
including value added tax
Jalousie flap JK-165 Silent 0,30m²
Order no.: 9630110403
- 0,300
- 175
- -
- -
- -
1,120.98 € / Piece
including value added tax
Jalousie flap JK-165 Silent 0,35m²
Order no.: 9630110404
- 0,350
- 175
- -
- -
- -
1,223.32 € / Piece
including value added tax
Jalousie flap JK-165 Silent 0,51m²
Order no.: 9630110407
- 0,510
- 175
- -
- -
- -
1,249.50 € / Piece
including value added tax
Jalousie flap JK-165 Silent 0,58m²
Order no.: 9630110416
- 0,570
- 175
- -
- -
- -
1,364.93 € / Piece
including value added tax
GEG Flap 520 (Size 1)
Order no.: 9630020600
- 0,150
- 953
- -
- integrated
- -
2,665.62 € / Piece
including value added tax
GEG Flap 600 (Size 2)
Order no.: 9630020601
- 0,180
- 1023
- -
- integrated
- -
2,794.36 € / Piece
including value added tax
Multileaf damper for the removal of fire gases and natural ventilation of the shaft.
The actuator of the shutter is equipped with an integrated limit switch for determining the ""damper open or closed"" position, for forwarding and evaluation by an external body (building- or lift control). In addition, the actuator runs almost noiselessly in ventilation mode and is not audible in adjacent rooms.
Net size: 360x300 mm
Builder´s opening: 520x360 mm installation in the reveal
free geometric cross-section 0,10m²
including mounting plate for flush mounting in the builder´s opening provided by the customer.
Total depth approx. 175 mm
