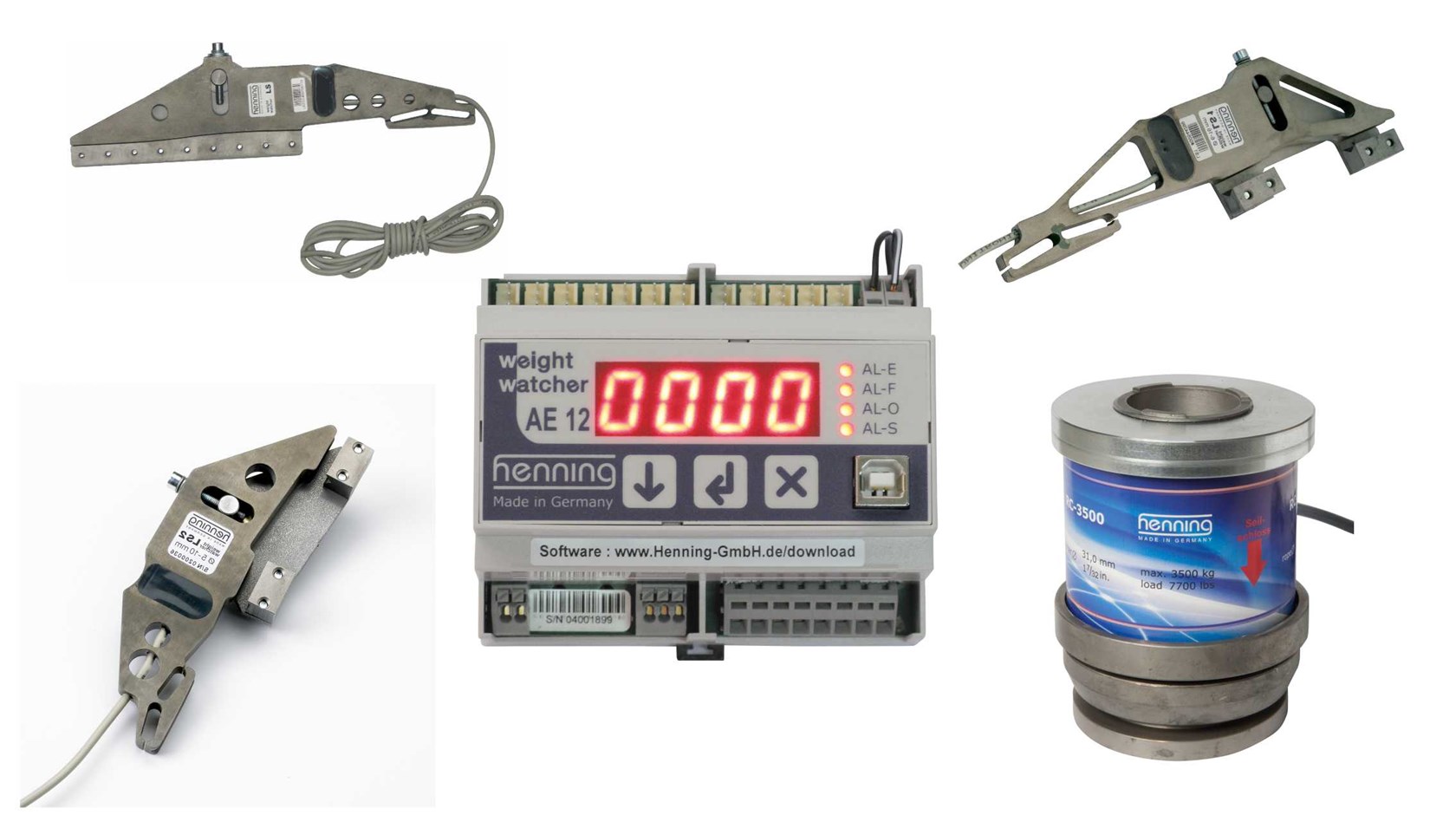

Overload control system Weightwatcher

Order no.: 68000455000
analogue output: no
dimensions (HxWxD mm): 105 x 90 x 62
number of sensors: 12
scanning frequency (Hz): 100
Streckenartikel werden in separaten Warenkorb gespeichert!
194.29 € / Piece
plus VAT.



Description:

Weight Watcher Controller Unit AE12 for up to 12 LS1 / LS2 / RC DONUT load sensors, 12 measuring channels, 4 programmablealarm relays (e.g. empty, full, overload, slack rope); USB-port including software wizard for optimum rope tension settings. CustomsTariff No.: 8431 31 00Technical DataPower supply voltage 12 - 28 V DCPower consumption max. 4 WNumber of relay outputs 4max. switching voltage 250 V ACmax. starting current 15 Amax. constant current 10 Amax. switching power (ohmic load)2500 Wmax. switching power (ind. load) 500 VAmin. switching power 0.3 WNumbers of measuring channels 12Range 30 HzSampling frequency 100 HzHOLD input 12 - 230 V AC





    1 - 10 from 10 Variants
    Order no.: 68000455000
    • 105 x 90 x 62
    • no
    • AE12
    • no
    • 12 - 230 V AC/DC
    • LS 1
    • 4 NO/NC (empty, full, overload, slack rope)
    • -
    194.29 € / Piece
    plus VAT.
    Order no.: 68000455002
    • 105 x 90 x 62
    • galvanically isolated
    • AE12 Analog
    • no
    • 12 - 230 V AC/DC
    • LS 1
    • 4 NO/NC (empty, full, overload, slack rope)
    • -
    252.59 € / Piece
    plus VAT.
    Order no.: 68000455005
    • 105 x 90 x 62
    • no
    • AE12 CANopen
    • yes
    • no
    • LS 1, LS 2, RC Donut
    • nicht verfügbar
    • -
    194.29 € / Piece
    plus VAT.
    Order no.: 68000455250
    • -
    • -
    • -
    • -
    • -
    • -
    • -
    • 0 - 300 kg
    59.15 € / Piece
    plus VAT.
    Order no.: 68000455255
    • -
    • -
    • -
    • -
    • -
    • -
    • -
    • 0 - 500 kg
    64.12 € / Piece
    plus VAT.
    Order no.: 68000455260
    • -
    • -
    • -
    • -
    • -
    • -
    • -
    • 0 - 1000 kg
    87.32 € / Piece
    plus VAT.
    Order no.: 68000455265
    • -
    • -
    • -
    • -
    • -
    • -
    • -
    • 0 - 3500 kg
    136.98 € / Piece
    plus VAT.
    Order no.: 68000455400
    • 250 x 75 x 19
    • -
    • -
    • -
    • -
    • -
    • -
    • 0 - 300 kg
    69.31 € / Piece
    plus VAT.
    Order no.: 68000455500
    • -
    • -
    • -
    • -
    • -
    • -
    • -
    • 0 - 500 kg
    69.31 € / Piece
    plus VAT.
    Order no.: 68000455850
    • 300 x 80 x 19
    • -
    • -
    • -
    • -
    • -
    • -
    • 100 - 2000 kg
    106.74 € / Piece
    plus VAT.
    Weight Watcher Controller Unit AE12 for up to 12 LS1 / LS2 / RC DONUT load sensors, 12 measuring channels, 4 programmablealarm relays (e.g. empty, full, overload, slack rope); USB-port including software wizard for optimum rope tension settings. CustomsTariff No.: 8431 31 00Technical DataPower supply voltage 12 - 28 V DCPower consumption max. 4 WNumber of relay outputs 4max. switching voltage 250 V ACmax. starting current 15 Amax. constant current 10 Amax. switching power (ohmic load)2500 Wmax. switching power (ind. load) 500 VAmin. switching power 0.3 WNumbers of measuring channels 12Range 30 HzSampling frequency 100 HzHOLD input 12 - 230 V AC
