With safety switch
Pit ladder type A, 3,00 m EN 81-20
Order no.: 0311300010
| Materials / corrosion protection: | extruded aluminium profile |
| Weight (kg): | 6,40 |
| Exterior ladder width (mm): | 350 |
| Interior ladder width (mm): | 300 |
| Number of rungs: | 10 |
| Ladder length (m): | 3,00 |
| Ladder application: | stationary and inclinable |
| DIN EN 81-20/50 compliant: | yes |
| Stile dimension (mm): | 55 x 20 |

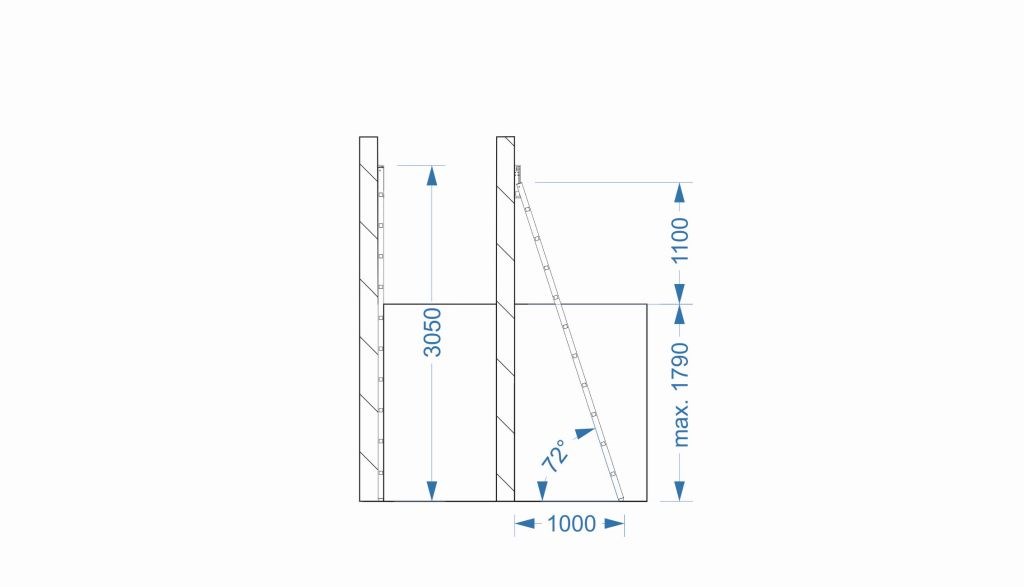

| Design-related angle of inclination alpha: | 72° |
| Max. pit depth with angle of inclination =alpha (m): | 1,790 |
| Rung dimension/rung depth (mm): | 29 x 29 |
Description:
with galvanised steel suspension and electrical safety switch
Suitable accessories
Ladder suspension fitting for the use of a padlock
Ladder suspension fitting with 3-edge lock
