Overload control system Weightwatcher
Order no.: 68000455850
| cable length (m): | 2,5 |
| calibration after installation: | no |
| measuring principle: | strain gauge |
| sensors calibrated: | yes |
Streckenartikel werden in separaten Warenkorb gespeichert!
Description:

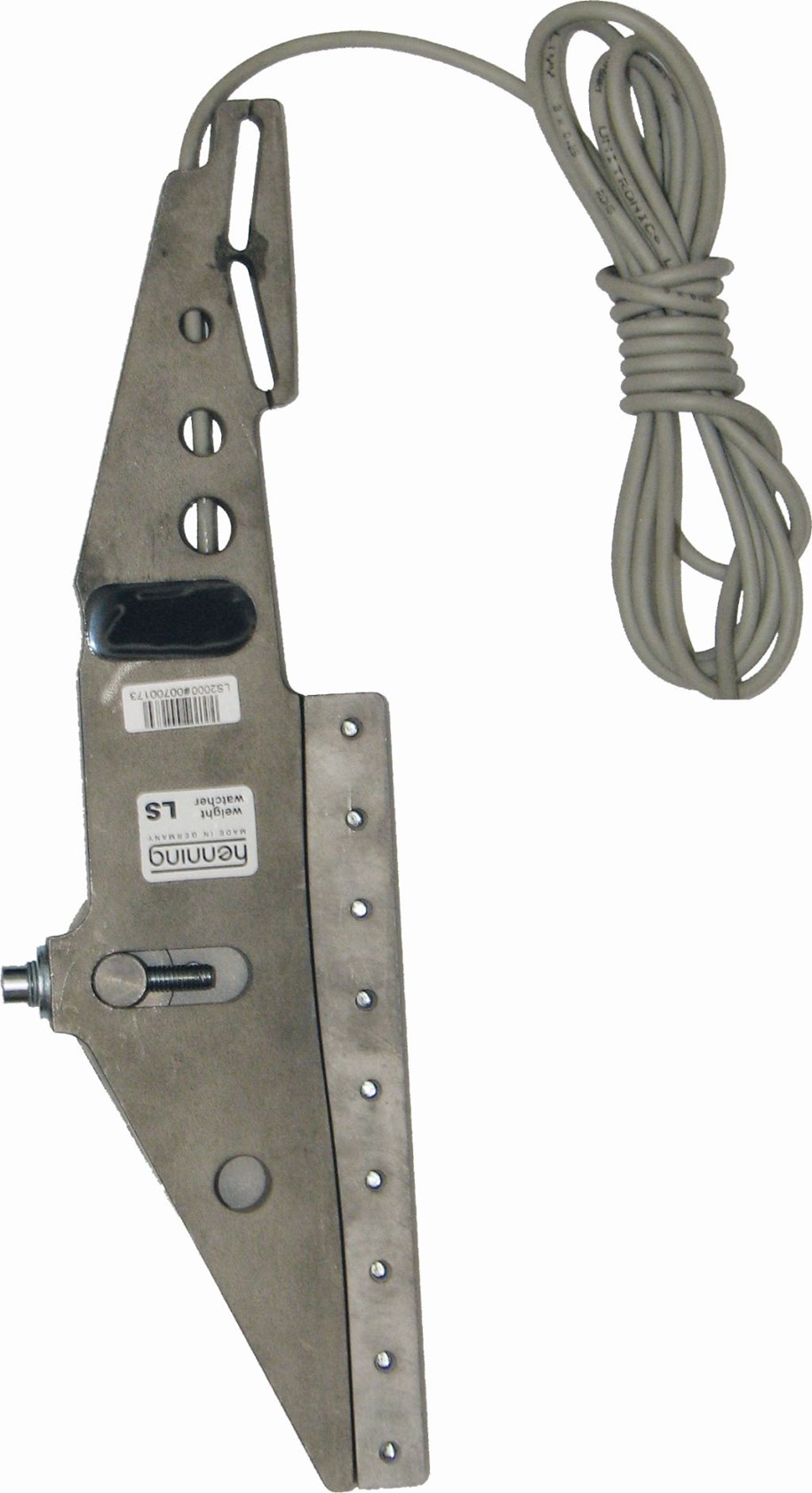

Rope load sensor for special use with extended measuring range. Inclusive pre-calibration for rope diameters - and Measuring rangesCustomsTariff No.: 8431 31 00Technical Data:Rope diameter 6 mm - 16 mmMeasuring range 200 - 4500 lbs (± 2,5% FSR)Maximum load 4000 kgBreaking load 6000 kgL x B x H (mm) 300 x 80 x 80Connection cable length 2,5 mTemperature range 0 °C - 70 °C
Rope load sensor for special use with extended measuring range. Inclusive pre-calibration for rope diameters - and Measuring rangesCustomsTariff No.: 8431 31 00Technical Data:Rope diameter 6 mm - 16 mmMeasuring range 200 - 4500 lbs (± 2,5% FSR)Maximum load 4000 kgBreaking load 6000 kgL x B x H (mm) 300 x 80 x 80Connection cable length 2,5 mTemperature range 0 °C - 70 °C
