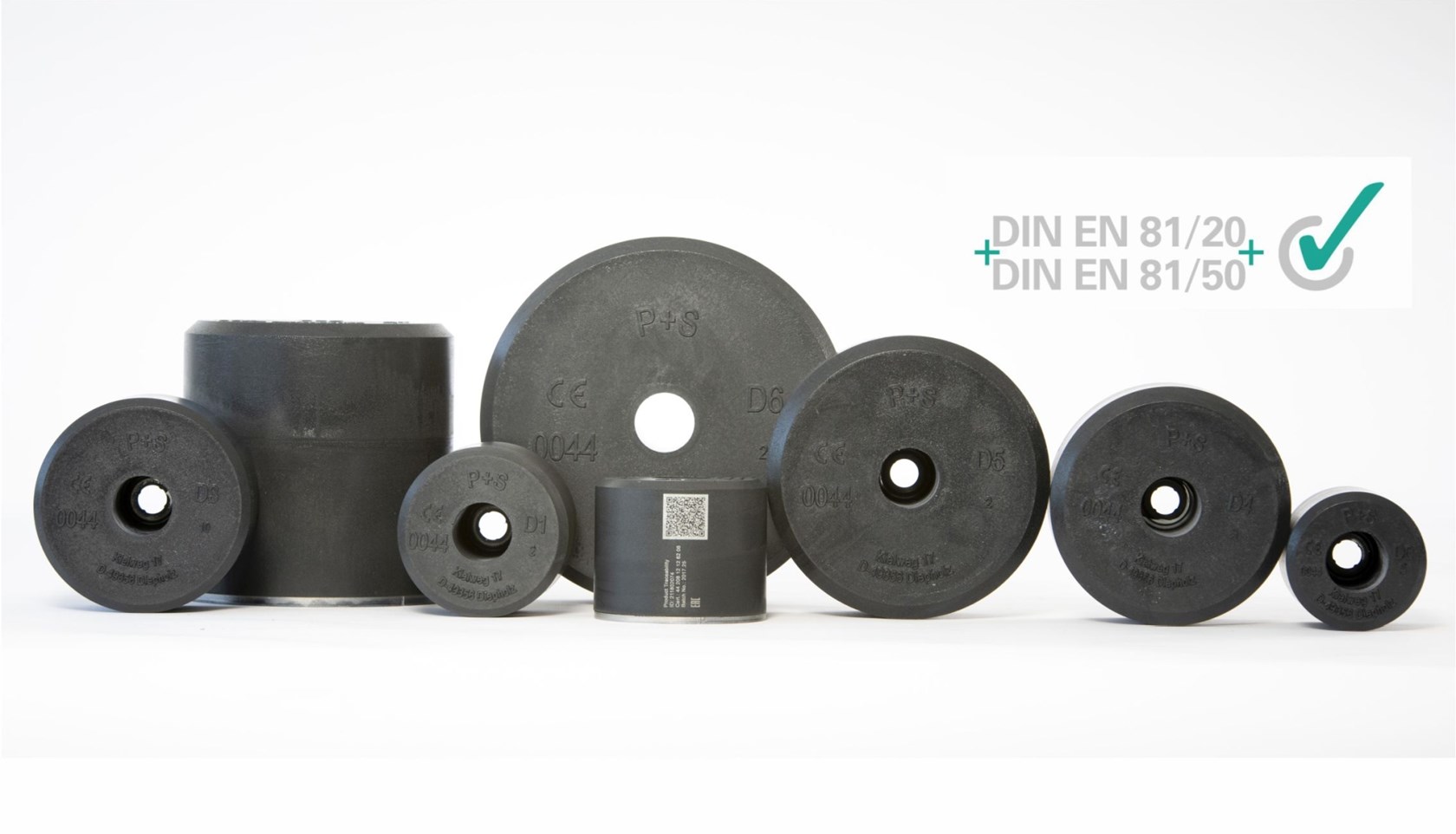

Lift buffers DIN EN 81-20/-50 compliant
Lift buffer D0 EN 81-20
Order no.: 0990800802
| load (kg) max.: | 600 |
| diameter: | 80 |
| DIN EN 81-20/50 compliant: | yes |
| height=H (mm): | 80 |
| nominal speed (m/s): | 1,00 |
| buffer size: | D0 |
| load (kg) min.: | 180 |
Description:
with foamed-in steel plate.
For nominal velocity v=1m/s.

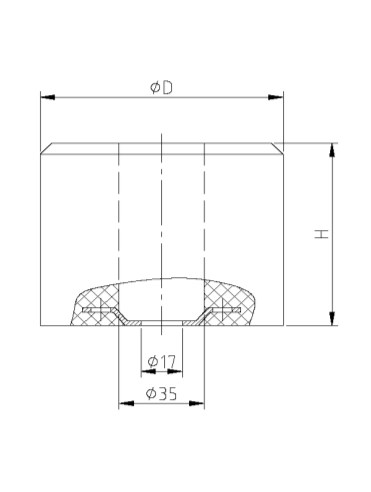

80x80mm (DxH).
Material Diepocell
1 -
7
from
7
Variants
Product
- load (kg) max.
- diameter
- height=H (mm)
- nominal speed (m/s)
- buffer size
- load (kg) min.
Price
Quantity
Lift buffer D0 EN 81-20
Order no.: 0990800802
- 600
- 80
- 80
- 1,00
- D0
- 180
16.07 € / Piece
including value added tax
Lift buffer D1 EN 81-20
Order no.: 0991000802
- 700
- 100
- 80
- 1,00
- D1
- 220
18.45 € / Piece
including value added tax
Lift buffer D2 EN 81-20
Order no.: 0991000803
- 1250
- 100
- 80
- 1,00
- D2
- 330
25.59 € / Piece
including value added tax
Lift buffer D3 EN 81-20
Order no.: 0991250802
- 1850
- 125
- 80
- 1,00
- D3
- 600
30.35 € / Piece
including value added tax
Lift buffer D4 EN 81-20
Order no.: 0991400802
- 1500
- 140
- 80
- 1,00
- D4
- 450
32.73 € / Piece
including value added tax
Lift buffer D5 EN 81-20
Order no.: 0991650802
- 2700
- 165
- 80
- 1,00
- D5
- 650
47.48 € / Piece
including value added tax
Lift buffer D6 EN 81-20
Order no.: 0992200802
- 5500
- 220
- 80
- 1,00
- D6
- 1500
80.33 € / Piece
including value added tax
with foamed-in steel plate.
For nominal velocity v=1m/s.
80x80mm (DxH).
Material Diepocell
