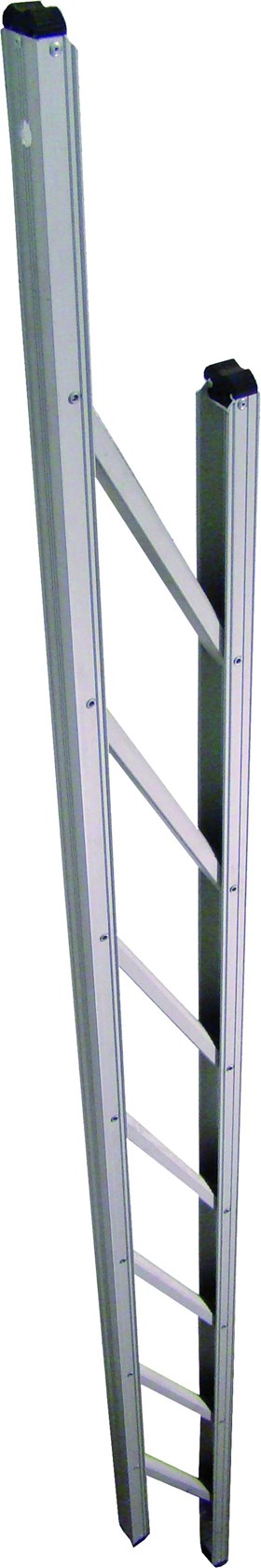

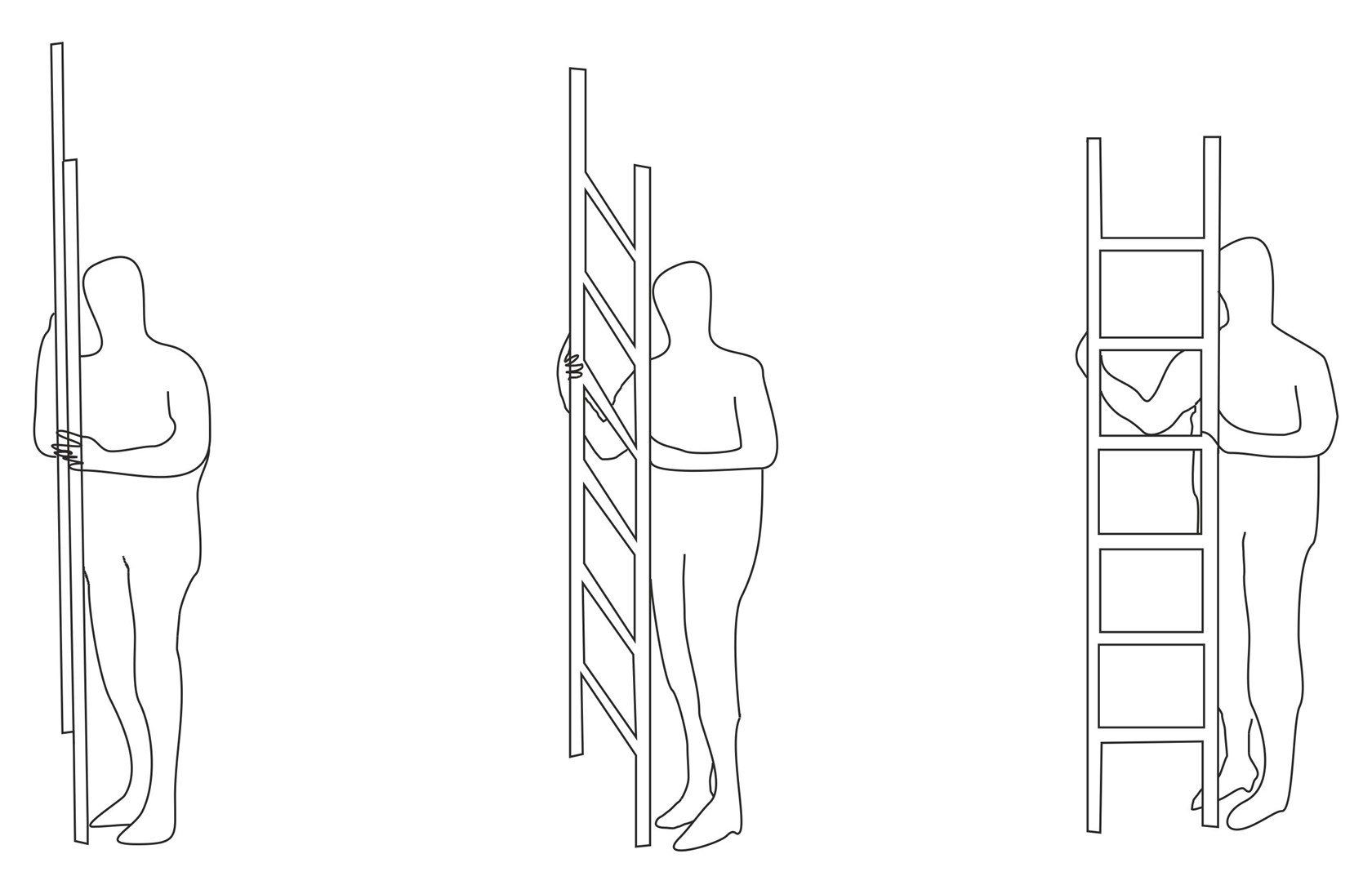

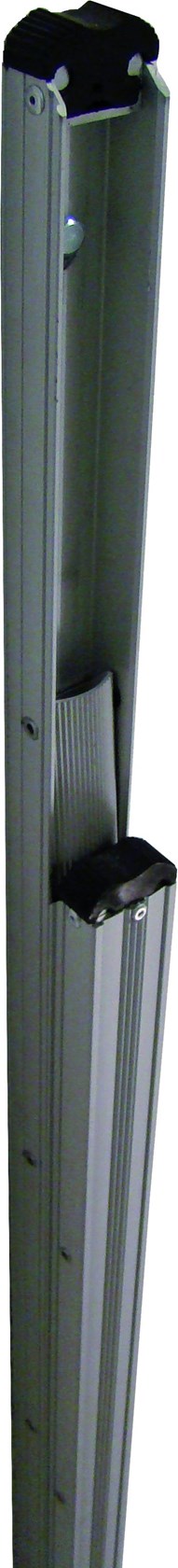

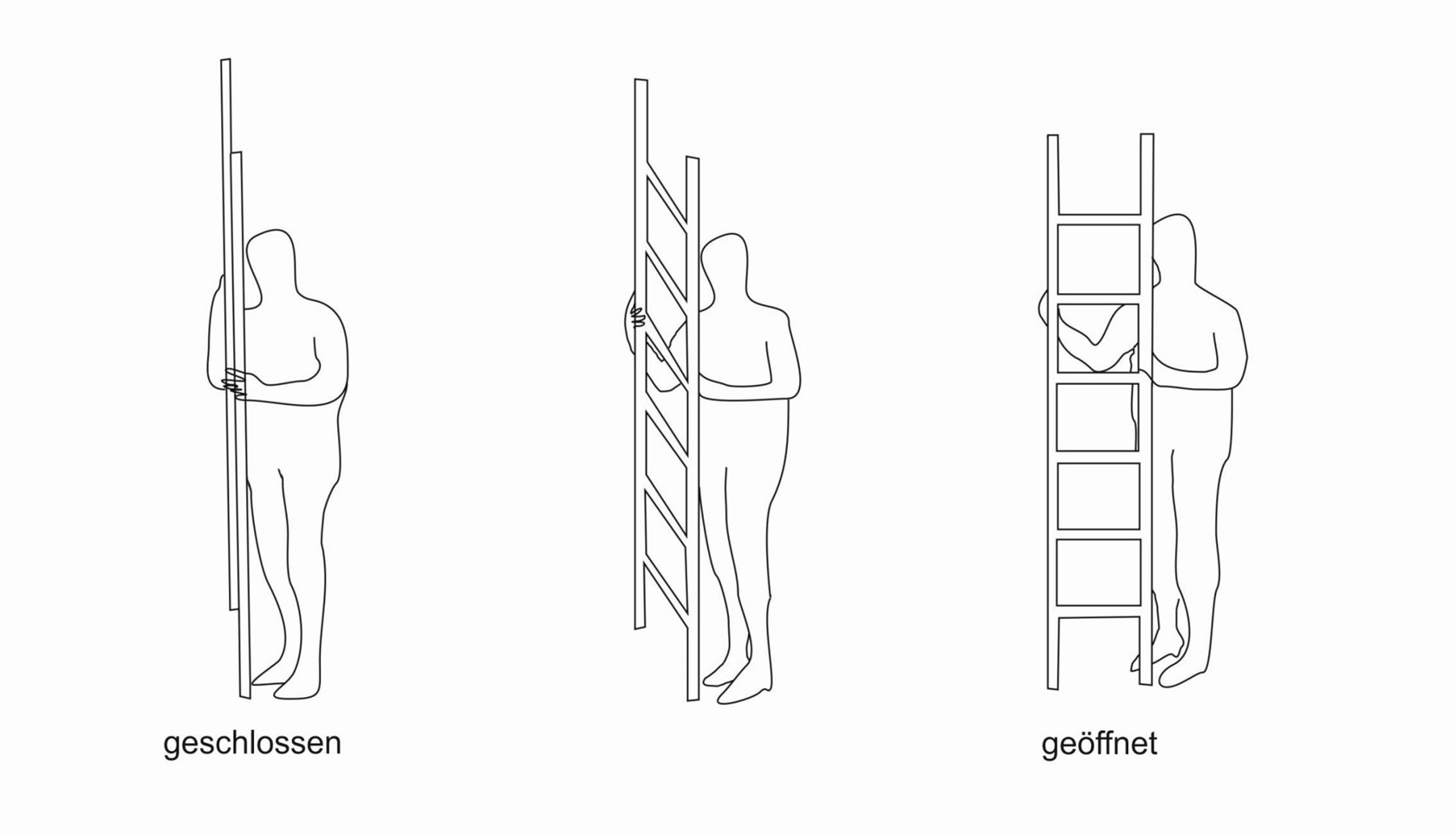

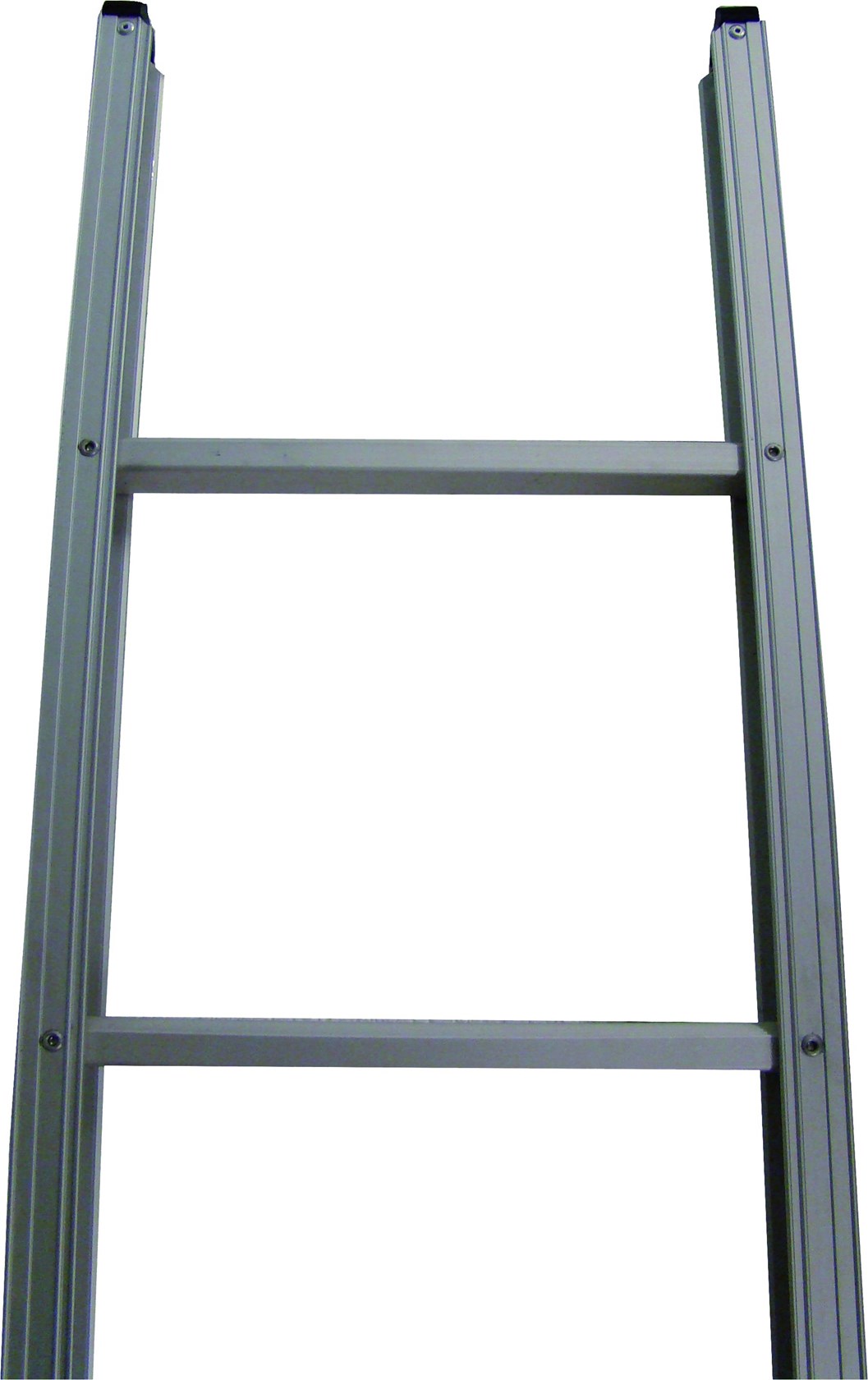

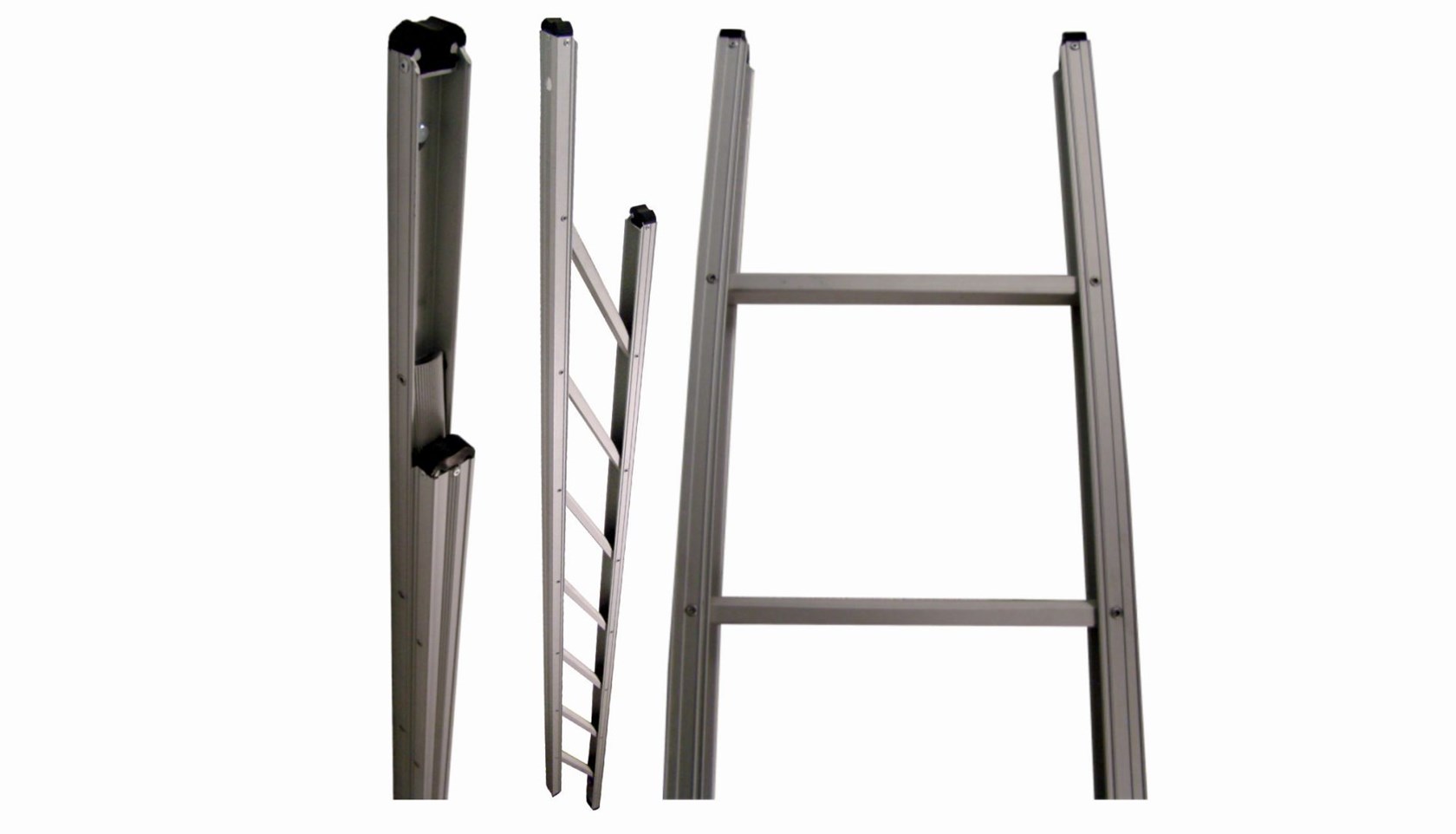

Bar ladder, can be opened vertically with floor attachment
pit ladder type J, approx. 1.80 m/lg, 4 rungs DIN EN 81-20
Order no.: 0335180000
| Materials / corrosion protection: | extruded aluminium profile |
| Weight (kg): | 3,70 |
| Exterior ladder width (mm): | 373 |
| Number of rungs: | 4 |
| Ladder application: | nicht ortsfeste, klappbare Trittleiter (sehr Platzsparend) |
| DIN EN 81-20/50 compliant: | yes |
| Stile dimension (mm): | 48x32 |
| Interior ladder width (mm): | 309 |

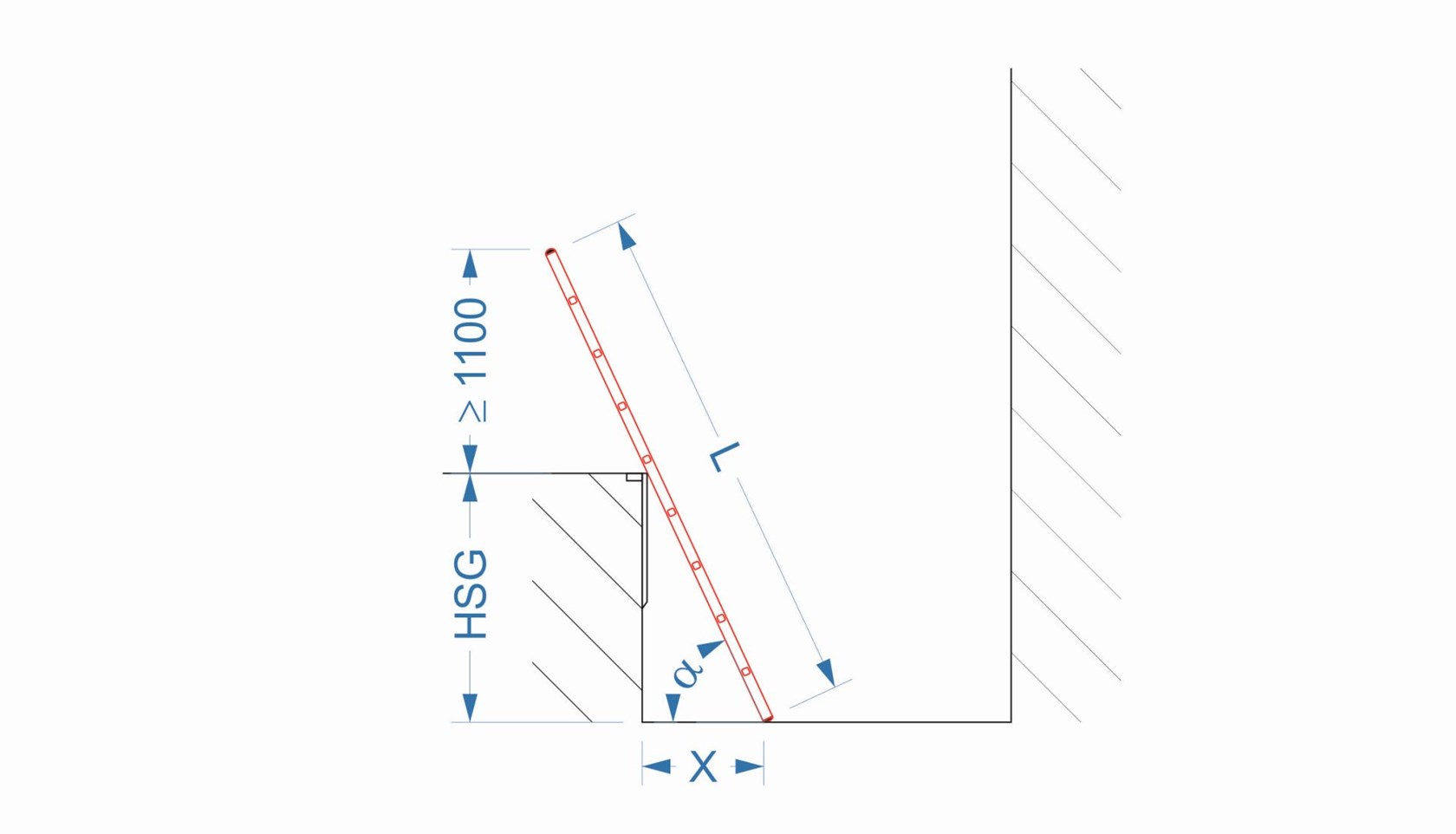

| Max. pit depth with angle of inclination 65° (m): | 0,22 |
| Max. pit depth with angle of inclination 70° (m): | 0,26 |
| Max. pit depth with angle of inclination 75° (m): | 0,30 |
| Rung dimension/rung depth (mm): | 37 |
| Floor attachment: | yes |
| Length of ladder opened (m): | 1,450 |
| Length of ladder closed (m): | 1,800 |
| Surveillance contact: | no |
Description:
according to EN 81-20, ladder length: 1.80 m closed, 1.45 m open, number of rungs: 4, incl. floor attachement, knotted chain and fixing material.
1 -
9
from
9
Variants
Product
- Weight (kg)
- Number of rungs
- Length of ladder opened (m)
- Length of ladder closed (m)
Price
Quantity
pit ladder type J, approx. 1.80 m/lg, 4 rungs DIN EN 81-20
Order no.: 0335180000
- 3,70
- 4
- 1,450
- 1,800
245.74 € / Piece
including value added tax
pit ladder type J, approx. 2.10 m/lg, 5 rungs DIN EN 81-20
Order no.: 0335210000
- 4,20
- 5
- 1,750
- 2,100
275.37 € / Piece
including value added tax
pit ladder type J, approx. 2.35 m/lg, 6 rungs DIN EN 81-20
Order no.: 0335235000
- 4,70
- 6
- 2,000
- 2,350
295.00 € / Piece
including value added tax
pit ladder type J, approx. 2.65 m/lg, 7 rungs DIN EN 81-20
Order no.: 0335265000
- 5,20
- 7
- 2,300
- 2,650
317.25 € / Piece
including value added tax
pit ladder type J, approx. 2.90 m/lg, 8 rungs DIN EN 81-20
Order no.: 0335290000
- 5,70
- 8
- 2,600
- 2,900
339.39 € / Piece
including value added tax
pit ladder type J, approx. 3.20 m/lg, 9 rungs DIN EN 81-20
Order no.: 0335320000
- 6,20
- 9
- 2,850
- 3,200
367.71 € / Piece
including value added tax
pit ladder type J, approx. 3.50 m/lg, 10 rungs DIN EN 81-20
Order no.: 0335350000
- 6,70
- 10
- 3,150
- 3,500
407.10 € / Piece
including value added tax
pit ladder type J, approx. 3.75 m/lg, 11 rungs DIN EN 81-20
Order no.: 0335375000
- 7,20
- 11
- 3,400
- 3,750
437.92 € / Piece
including value added tax
pit ladder type J, approx. 4.30 m/lg, 13 rungs DIN EN 81-20
Order no.: 0335430000
- 8,20
- 13
- 4,000
- 4,300
492.07 € / Piece
including value added tax
according to EN 81-20, ladder length: 1.80 m closed, 1.45 m open, number of rungs: 4, incl. floor attachement, knotted chain and fixing material.
Suitable accessories

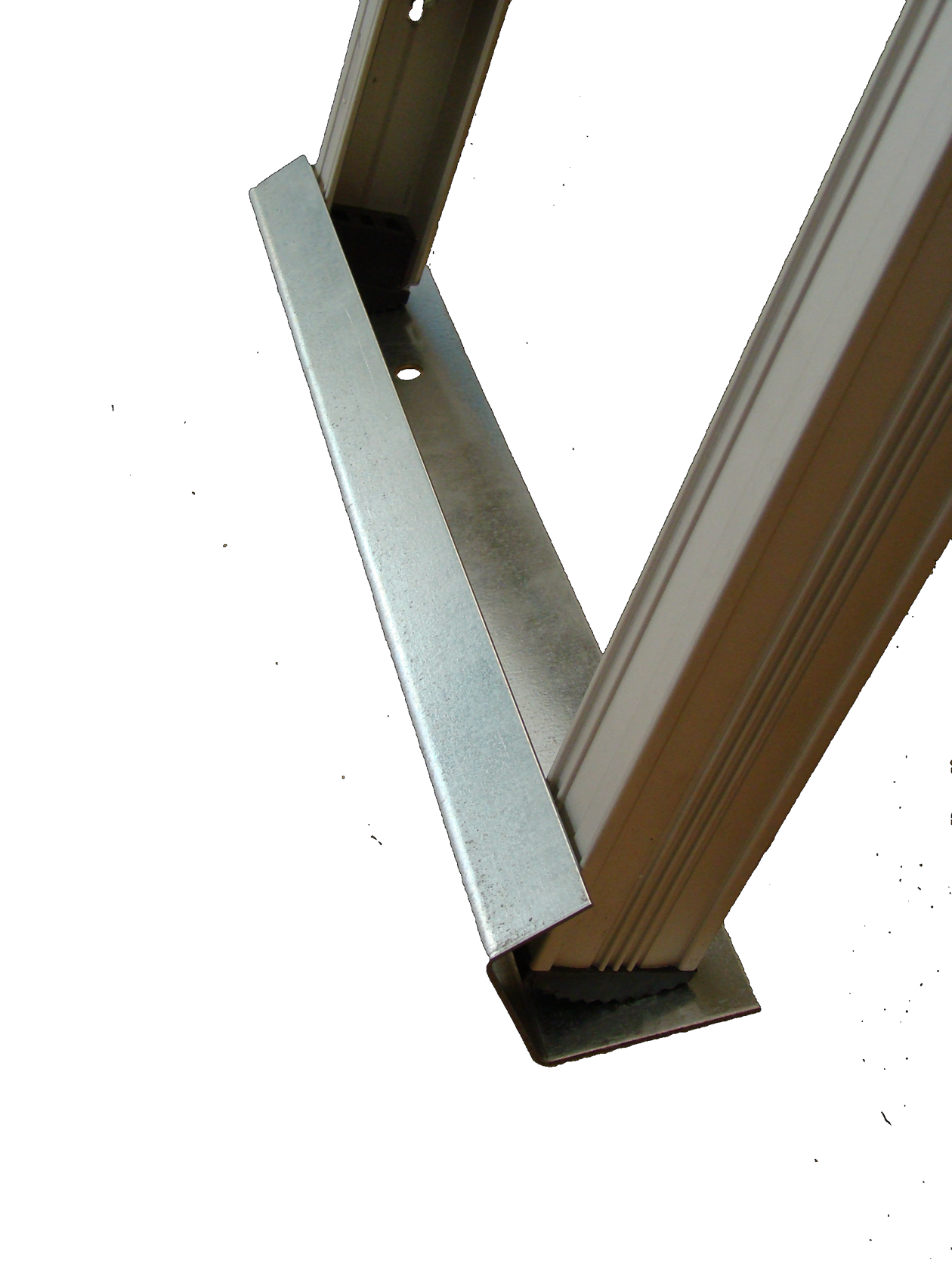

Floor attachment and chain for pit ladder type J

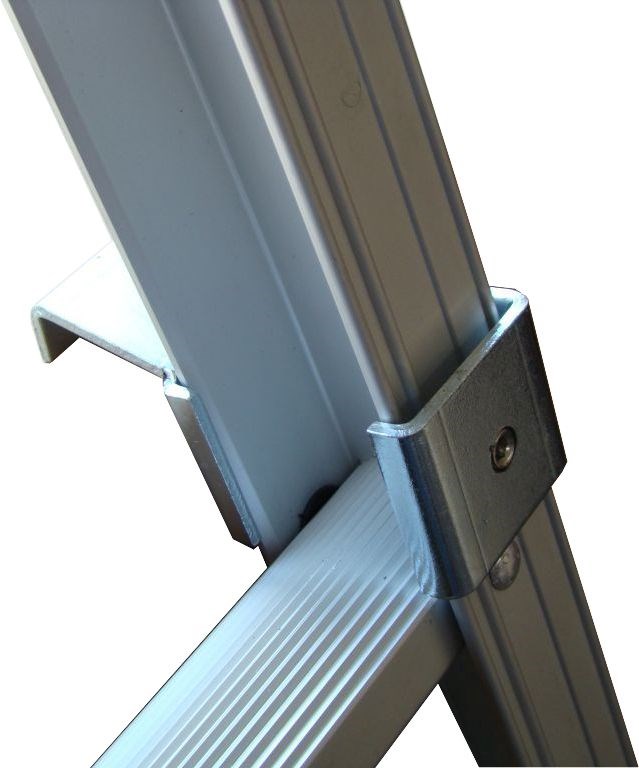

Set of pit ladder hooks for ladder type J

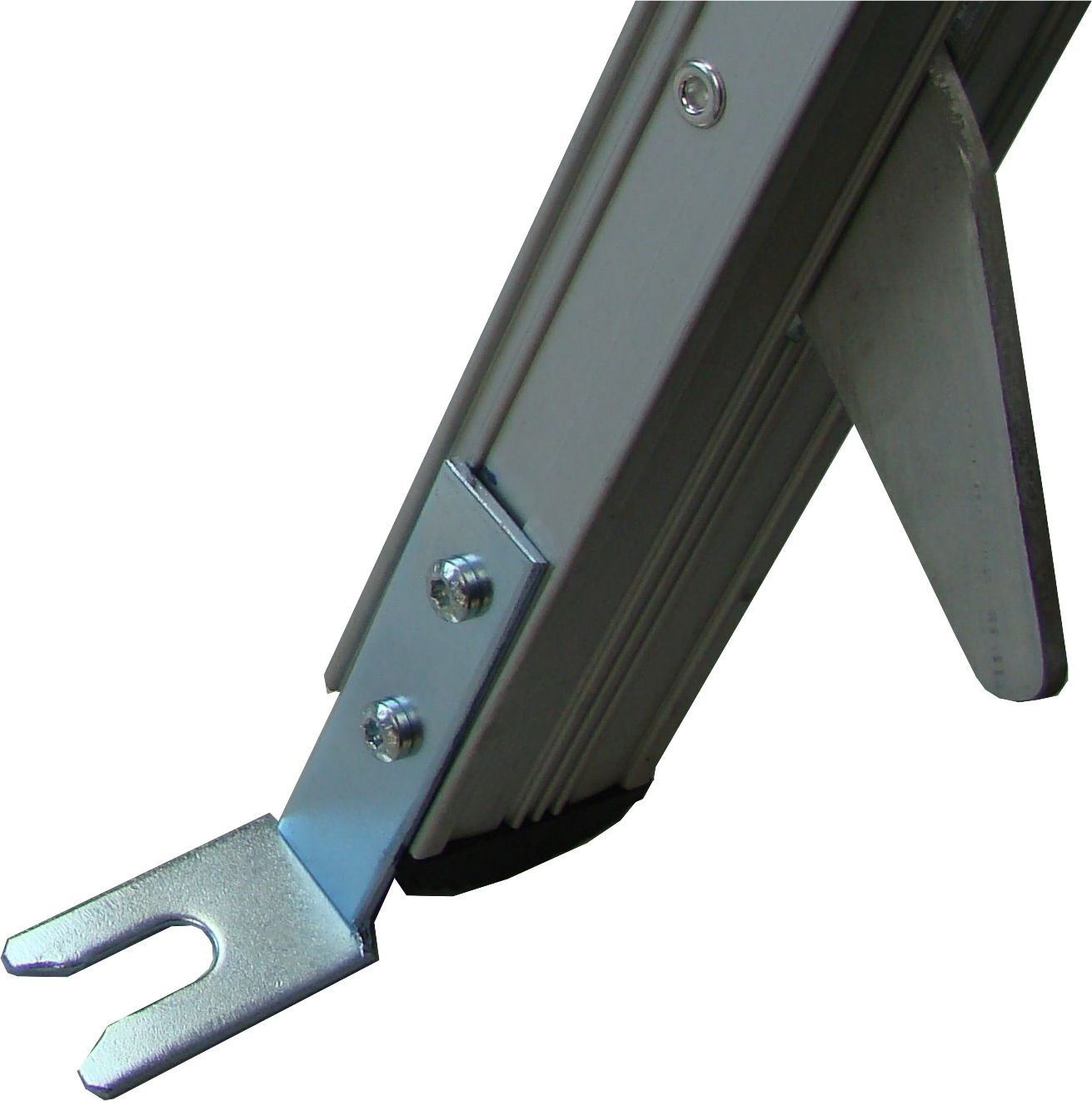

Set of angle floor brackets for ladder type J

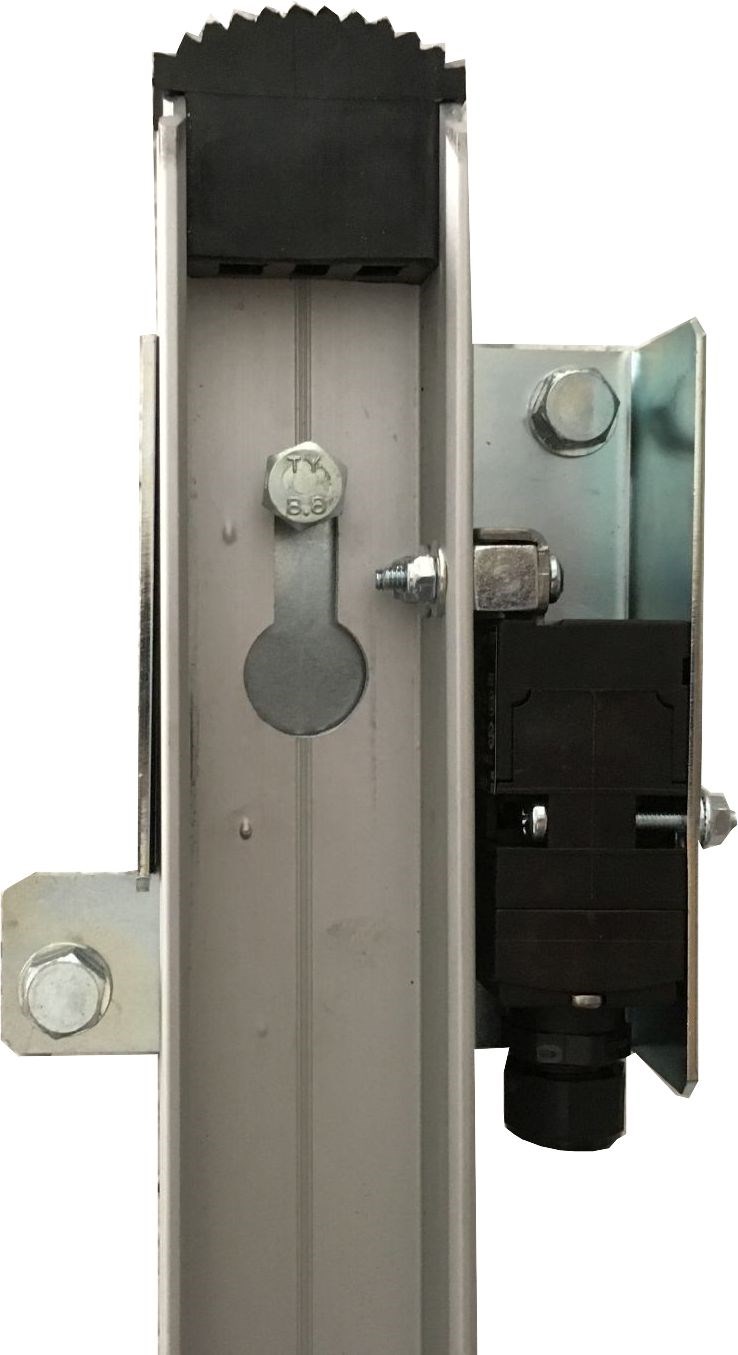

Wall holder for pit ladder type J, with position switch

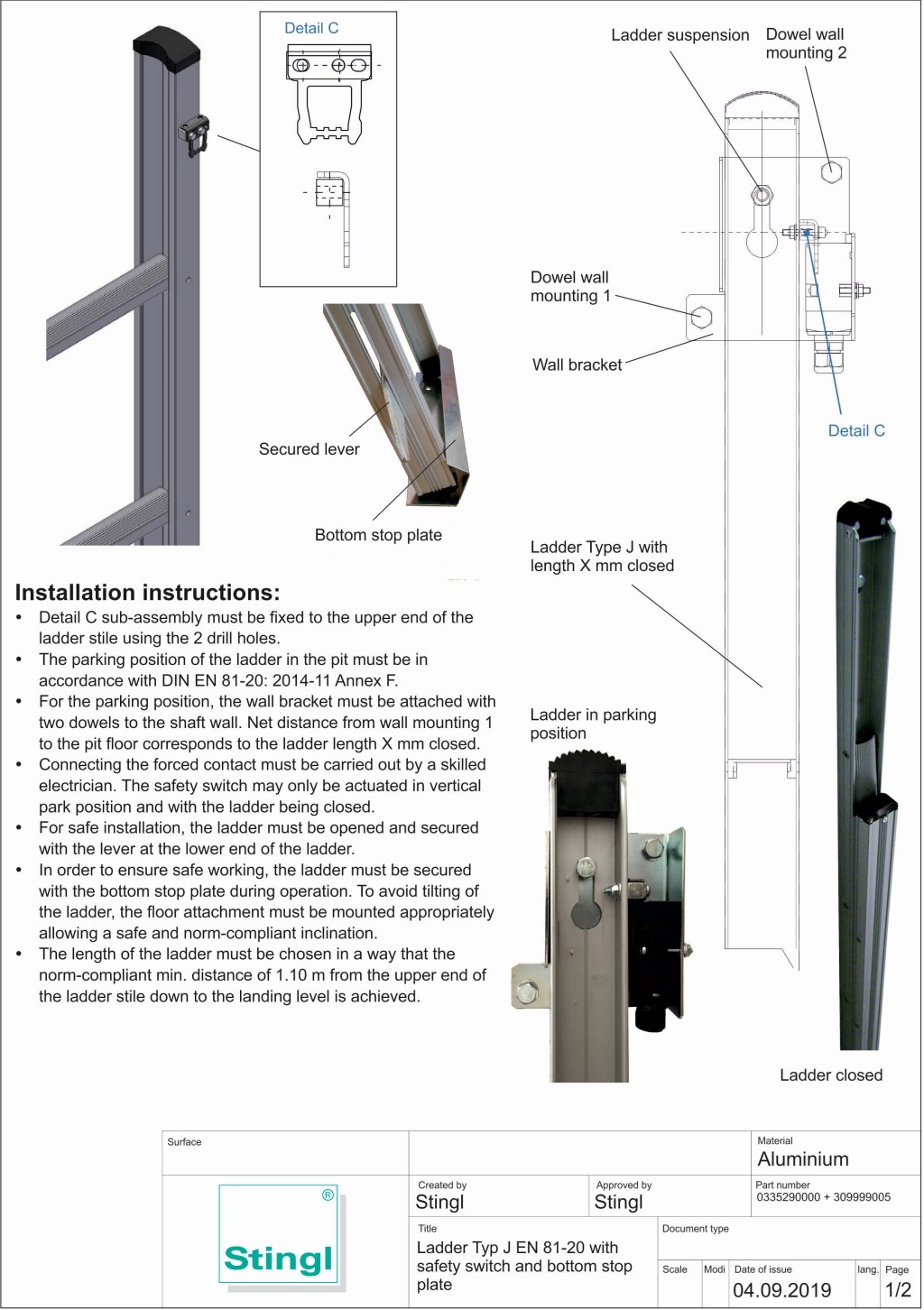

Mounting instructions EN/DE for wall mounting of ladder type J EN 81-20
